Stryker Altrix - Calentador de Mantas
Stryker

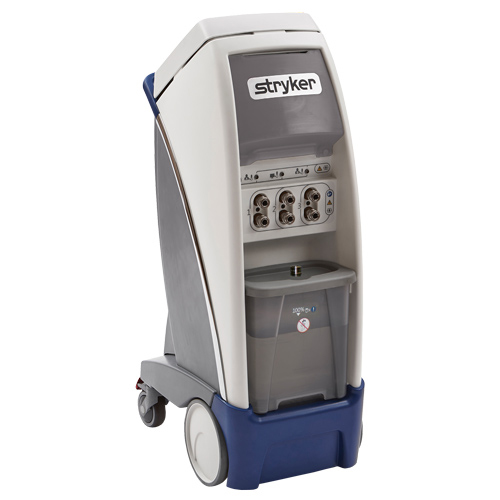

Stryker Altrix Temperature Management System

Pida Cotización
Cotizaciones en menos de 24 horas

Stryker Altrix Temperature Management System Features

The Stryker Altrix is a temperature management system that is used to regulate patient temperatures to maintain patient control within ±0.1°C. The Altrix utilizes 3 water circuits and maximizes performance to achieve the target temperature quickly and as safely as possible. The target temperature is achieved with non-invasive and non-adhesive body wraps redesigned to increase patient surface contact and air gaps. This Stryker temperature management system comes with pre-configured settings for a wide variety of hypothermia, hyperthermia, or other temperature management applications.

  • Three water circuits with self-sealing ports to reduce water spillage. Each circuit can be individually monitored.
  • User-friendly graphical user interface.
  • Easy maneuverability with an ergonomic design.
  • Removable translucent water reservoir that allows uninterrupted performance while refilling.

Stryker Altrix Temperature Management System Specifications

Dimensions

  • Height: 42.5” (107.9 cm)
  • Width: 15” (38.1 cm)
  • Depth: 23” (55.4 cm)
  • Weight (empty): 150 lbs (68 kg)
  • Reservoir Capacity: 1.3 gal (5 L)

Water Temperature

  • Control Setting Range: 39.2°-104.0° F (4.0°-40.0° C)
  • Control Accuracy: ±0.3° C (4.0°-40.0° C)
  • Display Measurement Accuracy: ±0.2° C (4.0°-40.0° C)
  • Display/Resolution: 0.1° C
  • Default: 104.0° F (40.0° C)

Water Temperature

  • Control Setting Range: 39.2°-104.0° F (4.0°-40.0° C)
  • Control Accuracy: ±0.3° C (4.0°-40.0° C)
  • Display Measurement Accuracy: ±0.2° C (4.0°-40.0° C)
  • Display/Resolution: 0.1° C
  • Default: 104.0° F (40.0° C)

Patient Temperature

  • Control Setting Range: 89.6°-100.4° F (32.0°-38.0° C)
  • Control Accuracy: ±0.1° C (32°-38°C)
  • Measurement Accuracy: ±0.3° C (25.0°-45.0° C) ±0.4° C (0.0° C-24.9° C, 45.1° C-50.0° C)
  • Display/resolution: 0.1° C
  • Display Range: 32.0°-122.0° F (0.0°-50.0° C)
  • Default Setting: 98.6° F (37.0° C)

Controller

  • Heater Capacity Max: 500 watts
  • Circulating Fluid: Sterile distilled water
  • Battery: 9V lithium
  • Alarm Tone Range: 75-85 dBA per standard; IEC 60601-1-8
  • Water flow rate in each hose port typical: 1.2 lpm
  • Refrigerant Type: R134a
  • Power Cord Length: 14 to 15 feet (4.2-4.5 meters)
  • Clinical Thermometer: Direct mode
