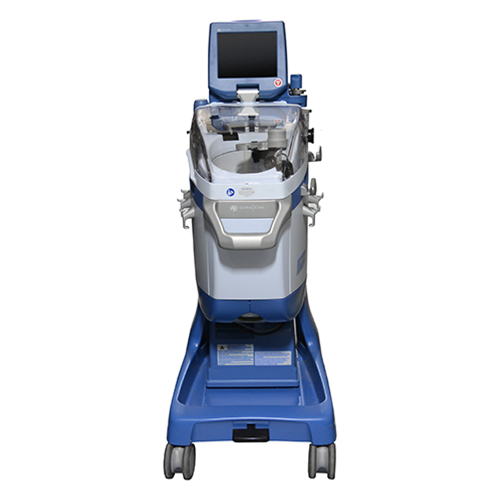

LivaNova Sorin Xtra Features
The LivaNova Sorin Xtra is an Autotransfusion System (ATS). The Sorin Xtra is an intuitive blood transfusion system. The LivaNova ATS offers a Blood Management Strategy that can collect, process, and reinfuse the patient’s blood, reducing the need for homologous blood and optimizing the use of blood products during procedures. The LivaNova ATS system was designed by the same people that brought you the Sorin S5 Heart-Lung machine. Combining some of the best features of the Sorin brand to bring you an intuitive transfusion system. These features include an 8.4-inch color touchscreen display and an advanced data management system for patient data.
- Internal memory is capable of storing thousands of past cases.
- Integrated ink printer.
- RS232 ports for external PC connection.
- Integration capabilities with S5 and C5 heart-lung machines.
- Dual RBC detector with 2 optical sensors.
- Integrated non-invasive Hct sensor.
- New cartridge and tubing design for a straightforward setup.
LivaNova Sorin Xtra Specifications
Dimensions
- Height: 41.5” to 78” (105.5 cm to 198 cm)
- Width: 14.8” to 31.5” (37.5 cm to 80 cm)
- Depth: 19.7” to 26.8” (50 cm to 68 cm)
- Weight: 130 lbs (59.7 kg)
Display
- Type: Color LCD TFT
- Size: 8.4” (21.3 cm)
Power
- Voltage: 230 V~ or 100-120 V
- Frequency: 50 – 60 Hz
- Fuse Rating: 2xT6.3 A
Speeds
- Centrifuge Speed: 1500 ÷ 5600 rpm (steps of 100 rpm)
- Pump Speed: 25 – 1000 ml/min (adjustable)
