Ethicon G110

Características de Ethicon G110

• Utilizes ultrasonic energy to enable hemostatic cutting and/or coagulation of tissue
• The system includes an Ultrasonic Generator, a foot switch, and a handpiece
• Indicated for incising tissue when bleeding control and minimal thermal injury are desired
• Offers greater precision in tight spaces near vital structures

Especificaciones de Ethicon G110

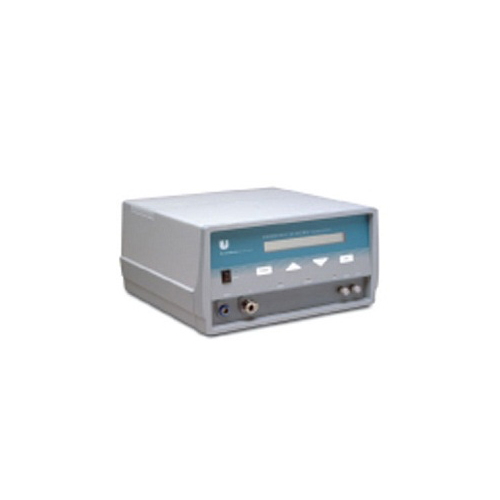

Generator

• Frequency: 55.5 kHz (output)
• Dimensions: 14” Wide x 8” High x 12” Deep. Weight: Approximately 20 lbs
• Power Requirement: 115 VAC, 60 Hz, 2 Amps, 230 Watts Max
• Fusing: Two, 3 AG Slow Blow 1⁄4” x 1 1⁄4”, 2 Amps, located in the power entry module. Three, internal, 5 mm x 20 mm Slow Blow, 1@ 1 Amp, 1 @ 0.25 Amps, and 1 @ 1.6 Amps
• Air Pressure: 6 psi Max
• Air Flow: Approximately 20 liters per minute
• Ventilation: At least 2” in the rear of the unit and the bottom vents should not be obstructed

Hand Piece

• Dimensions: Length: handpiece: 7”; cable: 10’. Weight: 6 ounces
• Connectors: Electric – 7 pin. Air – 1⁄4” CPC
• Sterilization: Steam or EtO

Foot Switch

• Switch: Dual SPST, Normally Off
• Voltage: 12 Volts maximum .010 Amps
• Cable: 3 conductors, shielded
• Power Cord: 15 foot, 3 conductors, 16 AWG, Grounded hospital grade power cord, terminated with IEC 320 connector
