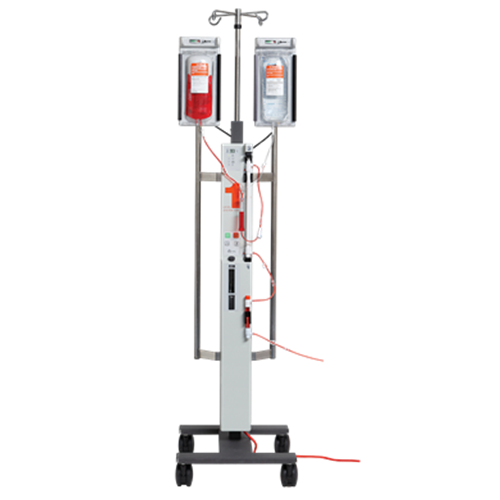

Smiths Medical Level 1 H-1025

Level 1 H-1025 Features

The Level 1 H-1025 Fast Flow Fluid Warmer provides a rapid flow of warmed fluids, such as crystalloid or blood product, including red blood cells, as volume replacement. Even a small drop in a patient’s body temperature can be detrimental – delaying recovery or allowing an infection to set in. With Level 1’s proven technology, the blood or fluid is inherently free of any “hot spots,” as the H-1025 employs a safe, sealed heating system.

• Automated Pressure Chambers: Rigid pressure chambers accommodate standard blood and crystalloid bags, providing a constant 300mmHgpressure for rapid infusion while allowing for fast and easy bag changes
• Heat Exchanger: Aluminum heat exchanger transfers heat 1000 times faster than plastic
• Gas Vent: The Gas Vent provides the added feature of automated air elimination, which eliminates microbubbles without the need for frequent repriming.
• Built-In Safety Features: Monitors reservoir temperature to prevent overheating, with an audible and visual alarm if reservoir temperature reaches43.9° C.

Level 1 H-1025 Specifications

General

• 230 V input voltage
• 1400 W power heater
• 7 kg weight
• 1.4-litre water reservoir volume
• Designed for gravity flow and pressure trauma situations
