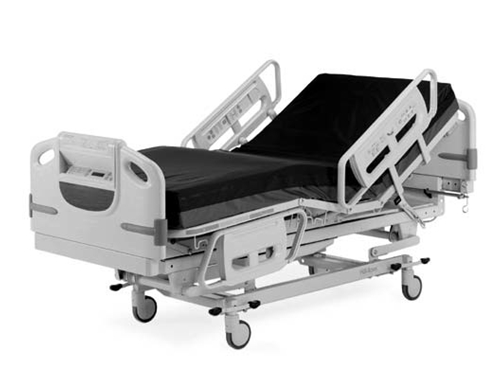

Hill-Rom Advanta P1600 Bed Features
One of the most popular full electric, adjustable “med-surg” hospital beds the Advanta P1600 model is good for home use, nursing schools and medical facilities. This is a 6 function bed with a “chair position”, trendelenburg settings and head up and down and bed up and down features.
- Attributes
- Bed Type Electric
- Height 30 in High, Low 17″
- Length 91 in
- Width 42.7 in with side rails up
- Integrated scale – optional feature
- 3-mode bed exit – optional feature
- 1-button instant CPR
- Integrated air system
- Central brake and steer
- Multiple surface options – foam or air mattress
Hill-Rom Advanta P1600 Bed Specifications
Technical Specifications
- Total Length: 91” (231cm)
- Retracted length: 78.5” (199.4 cm)
- Mattress Support width: 35” (89 cm)
- Mattress Support Length: 83” (211 cm)
- Maximum Width (siderails stored): 36” (91 cm)
- Maximum width (siderails up): 42.75” (108.6 cm)
- Maximum headboard height: 48” (122 cm)
- Maximum footboard height: 45” (114 cm)
- Maximum siderail height: 45” (144 cm)
- Minimum under-bed clearance: 4.75” (12.07 cm)
- Hi-Lo range: 13.25” (33.66 cm)
Power cord length (minimum)
- 72” (183 cm)
Automatic contour
- Automatic Contour up: 15°
- Automatic Contour down: 28°
- Automatic Contour (knee): 10°
Trendelenburg
- Trendelenburg: 11 °
- Reverse Trendelenburg: 11 Trendelenburg
Patient Characteristics
- Height: 74” (188 cm) maximum, 54” (137 cm) minimum
- width: 36” (91 cm) maximum
- Weight: 500 lb ( 227 kg) maximum, 70 lb (32) minimum
Caregiver Siderail Controls
- Left/ Right Hand Side (standard):
- Bed Up/ Bed Down, Head Up/ Head Down, Lockout Indicator, Head Angle Indicator
- Left side (optional):
- Nurse call, PPM Mode: Position, Exiting, Out of Bed, PPM Exit Volume: low, Med, High, PPM Enable Control, PPM Mode Indicators, Brake not set indicator, Bed not down Indicator.
Patient Siderail Controls
- Left/ Right Hand Side (standard):
- Head Up/Head Down, Knee Up/Knee Down
- Left/ Right Hand Side (optional):
- Nurse Call, Room reading light, TV ON/Off, Channel up/Down, Radio Up/Down, Select (Closed Captioned TV), Volume Up/Down, Speaker
