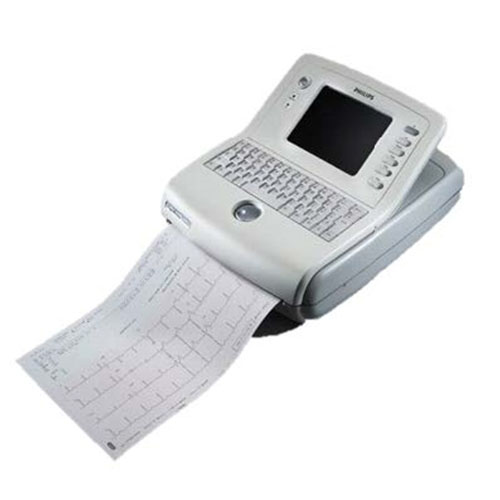

Philips PageWriter Trim III

Electrocardiógrafo (EKG)

Equipo Médico Philips - Soma Technology, Inc.

Descripción

Philips PageWriter Trim III Features

The PageWriter Trim III cardiograph is the ultimate in compact, cost-effective cardiograph solution. It is an interpretive EKG system that is easy to transport and combines ease-of-use features with a high-resolution full-color display to meet the needs of fast-paced clinical environments. This proven performer supports the reporting, storage, and transmission of 12-lead ECG data using industry standard XML. You can connect directly to Philips TraceMasterVue ECG Management System. ECGs can be transmitted anywhere at anytime allowing you instant, secure access to patient reports.

  • Easy-to-use features, such as a high-resolution 6.5-inch color screen
  • Intuitive Patient Interface Module
  • Multiple options to streamline information sharing including modem, USB, wired LAN or wireless 802.11 encrypted connectivity

Philips PageWriter Trim III Specifications

ECG Acquisition

  • EKG signal acquisition of up to 12 leads for both adult and pediatric patients
  • Real-time display, with patient name and ID
  • Automatic and configurable pacemaker detection
  • Metronome feature with configurable options to be used with the Master’s Two-Step Stress Test

ECG Quality Monitor

  • Real-time EKG signal quality indicators provide instant user feedback on the location of loose or inoperable electrodes
  • Color-coded waveforms indicate signal quality of each lead
  • Artifact, AC, and low and high pass frequency filters
  • The PageWriter Trim III cardiograph provides storage memory for 150 EKGs, with easy transfer by optional modem, optional CF card, or optional LAN connection
  • Full-screen preview of ECG reports exactly as they appear when printed allows for quality assessment checks prior to printing
  • The PageWriter III cardiograph includes the Philips 12-Lead Algorithm for interpretive analysis of the amplitudes, durations and morphologies of EKG waveforms and associated rhythm for adult and pediatric patients
  • This clinically proven interpretation program provides configurable levels of interpretive, reason and severity statements that are printed on the EKG report

Technical Specifications

  • R/T (real-time) ECG (12 leads)
  • AUTO (12 leads)
  • RHYTHM (up to 12 leads)
  • DISCLOSE (1 lead)
  • Full alphanumeric keyboard
  • 640 x 480 pixel resolution, color TFT display
  • 2000 samples per second per electrode/lead, 24-bit A/D conversion provides 5μV resolution
  • Auto Frequency Response: 0.05-150 Hz, 0.15-150 Hz, 0.5-150 Hz, 0.05-100 Hz, 0.15- 100 Hz, 0.5-100 Hz, 0.05-40 Hz, 0.15-40 Hz, 0.5-40 Hz

Mobile Cart

  • Integral Part of Cardiograph (Optional)



Fabricante

Philips
