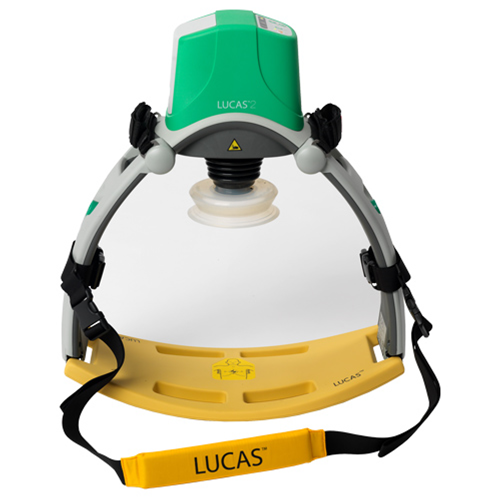

Stryker Physio-Control Lucas 2

The Stryker Physio-Control Lucas 2 is a chest compression system that can be used in Sudden Cardiac arrest patients. The LUCAS 2 provides high-quality, consistent chest compression, increasing the patient’s circulation and chances of a successful outcome. The Compression system can perforate at a rate of 100 compressions per minute. The Stryker Physio-Control Lucas 2 is a lightweight system that comes in a backpack and can easily be applied to a patient. The Stryker compression system consists of an upper part that contains a pneumatic driven piston rod, to achieve the best compression and a backplate. The System does not require any electricity to run it is powered by breathing oxygen or air from a wall outlet.

• The device maintains consistent chest compression over a long period of time.
• Used to perform external cardiac compressions on adult patients who have circulatory arrest defined as the absence of spontaneous breathing and pulse, and loss of consciousness.
• Backplate that gets positioned underneath the patient as a support for the external chest compressions.
• The upper part contains the proprietary and rechargeable LUCAS battery and the compression mechanism with a disposable suction cup.
• About 45 minutes battery runtime.

Stryker Physio-Control LUCAS 2 Specifications

Dimensions

• Height: 22” (57 cm)
• Width: 20.5” (52 cm)
• Depth: 9.4” (24 cm)
• Weight: 17.2 lbs (7.8 kg)

Patient Types

• Adult patients who fit into the device; sternum height of 6.7 to 11.9 inches / 170 to 303 mm; a maximum chest width of 17.7 inches / 449 mm
• The use of LUCAS is not restricted by patient weight.

Compressions

• Compression Depth: 1.5 to 2.0 inches / 4 to 5 cm from the Start Position
• Compression Frequency: 100 ± 5 compressions per minute
• Compression Duty Cycle: 50 ± 5%
• Compression Modes (operator selectable): 30:2 (30 compressions followed by a 3 seconds ventilation pause); Continuous compressions

Battery

• Type: Rechargeable Lithium-Ion Polymer (LiPo)
• Capacity: 3300 mAh (typical), 86 Wh
• Battery Voltage (nominal): 25.9 V
• Initial Battery Runtime (nominal patient): 45 minutes (typical)
• Maximum Battery Charge Time: Less than 4 hours at room temperature (72ºF / 22ºC)
• Required Interval for Replacement of the LUCAS Battery: Recommendation to replace the battery every 3 years or after 200 uses (of more than 10 minutes use each time)

Environmental

• Operating Temperature: +32°F to +104°F / +0°C to +40°C
• Storage Temperature: -4°F to +158°F / -20°C to +70°C
• Relative Humidity: 5% to 98%, non-condensing
• IP Classification (IEC60529): IP 43
• Operating Input Voltage: 12-24 V DC
