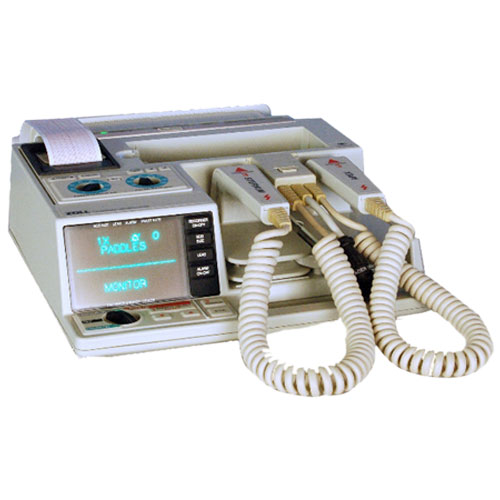

Zoll D 1400

Zoll D 1400 Features

The water-resistant Zoll PD-1400 was designed for transport use and is compatible with pads or paddles and pacing electrodes.

• An annotating recorder
• Sealed lead-acid battery
• Options provide AC/DC operation

Zoll D 1400 Specifications

• Weight w/ Pads: 13 lbs
• Weight w/ Paddles: 15 lbs
• Power: Sealed lead acid battery; 2V / cell, 5 cells, wired in series
• Design Standards: Meets or exceeds all AAMI specifications for defibrillators. Meets or exceeds UL 544 and CSA standards for medical equipment and MIL-STD-810E, Method 507.3 | MLD-STD-810D Method 514.3, Section I-3.2.3, Category 3 | MIL-STD-810E, Method 501.3 | MIL-STD-810-D, Method 500.2 | MIL-STD-202F, Method 213, Condition C | MIL-STD-810E, minimum integrity test for helicopters
• Pacemaker
• Pulse Type: Rectilinear, constant current
• Pulse Duration: 40 milliseconds
• Pulse Amplitude: Variable to 140 mA
• Pacing Rate: Variable from 30 to 180 ppm
• Output Protection: Fully defibrillator protected and isolated
• Bandwidth: 0.5-35 Hz (-3dB) standard – .05-35 Hz Diagnostic (optional)
• Screen Size: 4.5 inches diagonally
• Sweep Speed: 25 mm/sec
• Viewing Time: 3.4 seconds
• Heart Rate: Digital display 0-300 bpm
• Pacer Output Current: Digital display 0-140 mA
• ECG Size: .5,1.0,1.5,2.0,3.0 cm/mV
