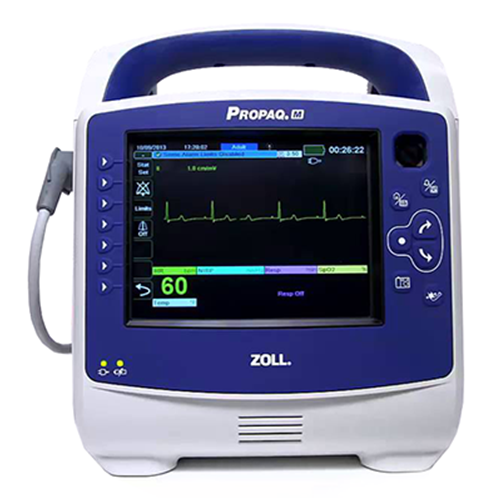

Zoll Propaq M Defibrillator Features
With over 25 years of experience manufacturing resuscitation technologies for the military, ZOLL understands that to meet today’s demands, you require more than just the best monitoring technology available. The ZOLL Propaq® M, in addition to providing the trusted and proven vital signs you have come to expect from Propaq, now has significantly enhanced data communications, allowing you to capture patient care data from the point of injury through definitive care. Rugged and lightweight, the Propaq M is specifically designed for military and air medical operations.
- Available with full Masimo® Rainbow® SET technology
- Advanced physiologic monitoring, including three invasive blood pressure channels
- Robust data communications and optional integrated printer
- Hot-swappable battery with over 7.5 hours of monitoring
- Backward-compatible with all older Propaq monitor accessories
- Remote viewing capability
- Only transport monitor with a defibrillator and pacer option
Zoll Propaq M Defibrillator Specifications
Dimensions
- Weight: 7.2 lbs without battery and 8.5 lbs with battery
- Dimensions: 8.9” x 10.4” x 7.0” without handle 8.9” x 8.7” x 6.5”
Display
- Type: Bright, Color, LCD TFT
- Brightness: User-adjustable
- Resolution: 640 x 480 pixels
- Waveform Traces: 4, 6, or 12 waveforms
- Display Modes: Standard, high contrast, NVG(night vision goggle) friendly
- Waveform Durations: 4.8, 9.5 seconds
Power
- Rechargeable, user replaceable, lithium ion
- Operating Time: 7.5 hours (display)
- brightness at 30%, ECG, Sp02, EtCO2, IPx3, temp x2 and NIBP every 15 min)
- Battery: Size: 178 mm x 93 mm x 30 mm
- Battery Weight: 1.4 lbs
- Battery Indicators: 5 battery capacity LED indicators, fault indicator, recalibration indicator
- Recharge Rate: 4 hours to 100%
- AC Power Adapter: 100 – 240 VAC 50, 60, 400 Hz (@110V)
Environment
- Operating Temperature: 0° – 50°C, -26° to 60°C for 6 hours, per MIL-STD 810G Method
- 501.5, Procedure III, and Method 502.5 Procedure II
- Operating Relative Humidity: 15% – 95%, NC
- Operating Altitude: Up to 15,000 ft
- Transport/Storage Temperature: -30° – 70°C
- Shock: 75G per MIL-STD 810G
Temperature
- Two YSI 400/700 compatible channels
- Range: 0° – 50° C,
- Units: °C or °F
- Display: T1, T2, and Delta temp
- Accuracy: ± 0.1°C (± 0.06°F) from 10 – 50°C (50° – 122°F) ± 0.2°C (± 0.11°F) from 0° – 10°C (32 – 50°F)
