Axia SL1

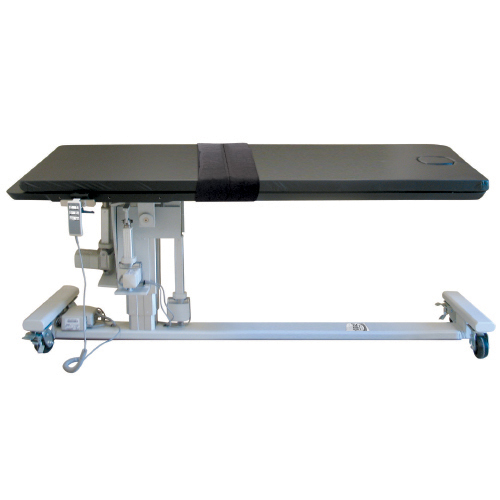

Axia SL1 Imaging Table Features

The Axia SL1 was designed for high patient throughput for surgery centers, pain management, and other multidisciplinary medical facilities. The SL1 is a mobile imaging table which is intended to support a 500-pound patient. This Axia imaging table is intended to be used with mobile x-ray for minimally invasive procedures.

• Carbon fiber, diving board style for easy C-arm access
• Adjustable height 28″ – 38″
• Large patient capacity – high-end actuator motor supports 500-pound loads
• An 84″ length can accommodate even the tallest of patients
• A 24″ top eliminates the need for arm boards
• Two-inch thick, high-quality patient comfort pad
• Facial cut-out for prone procedures

Axia SL1 Imaging Table Specifications

Dimensions

• Height (Adjustable): 28 – 38 In (71.1 – 96.5 cm)
• Width: 24 In (61 cm)
• Length: 86 In (218.4 cm)
• Weight: 375 lbs (170 kg)

Tabletop

• Height: 2 In (5 cm)
• Width: 24 In (61 cm)
• Length: 84 In (213.4 cm)
• Material: Carbon fiber skin/foam core with integral facial cut-out

Radiolucent Area

• Width: 24 In (61 cm)
• Length: 56 In (142.2 cm)

General

• Hand Control: Activates all motions
• Base: I-Shaped with Epoxy Finish
• Castors: 5 In (12.7 cm) with full swivel & wheel lock
• Patient Straps: 2
