Axia SL2

Axia SL2 Features

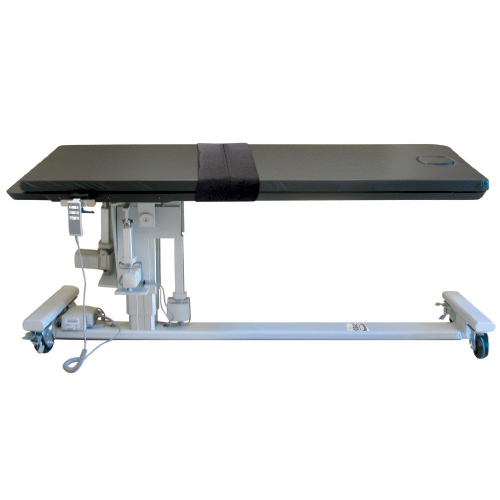

The Axia SL2 imaging table is designed for high patient throughput for surgery centers, pain management, and other multidisciplinary medical facilities. It features a diving board style for easy C-arm access and a large patient capacity of 500 pounds. The Axia SL2 is a 2 movement table.

• Patient Capacity: 500lb (227kg)
• Tabletop Material: Carbon fiber skin/foam
• core with integral facial cut-out
• Radiolucent Area: 56” x 24”
• Tabletop: 84”L x 24”W
• Table Dimensions: 86”L x 26”W
• 5” Castors
• Mattress: 2” thick (5 cm)

Axia SL2 Specifications

Dimensions

• Table Length: 86 in (218.4 cm)
• Table Width: 26 in (66 cm)
• Table Height: 28 – 38 in (71.1-96.5 cm)
• Weight Capactiy: 500 lbs (226.8 kg)

Tabletop / Imaging Area / General

• Tabletop (LWH): 84 x 24 x 1.62 in (213.4 x 61 x 4.1 cm)
• Radiolucent Area (LW): 56 x 24 in (142.2 x 61 cm)
• Material: Carbon Fiber – skin/foam
• Casters: 5 in (12.7 cm)
• Base (LW): I-Shaped Steel – 82 x 26 (208.3 x 66 cm)
• Hand Control: Activates all Motions
• Patient Straps: 2
• Mattress: 2 in (5.1 cm)
• Facial Cutout: Yes

Power

• AC Voltage: 120V~
• Frequency: 60 Hz
• AC Current: 2.5 A
• Electric Shock Protection: Class I
• Applied Part Rating: Type B
• Mode of Operation: 10% Duty Cycle; 1 min on, 9 minutes off

Movements

• Height: 28 – 38 in (71.1-96.5 cm)
• Lateral Tilt: ±17°
