GE Vivid IQ Premium


Equipo Médico GE - Soma Technology, Inc.

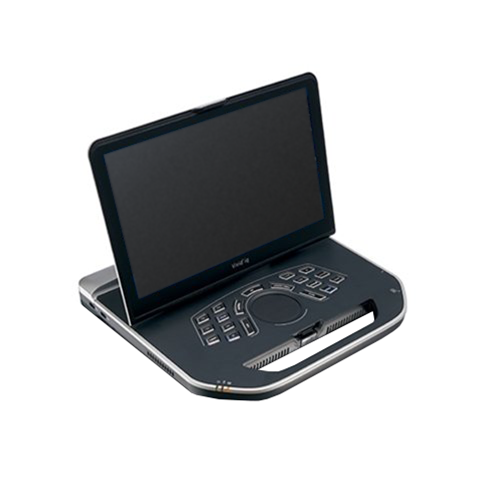

GE Vivid IQ Premium Features

The Vivid™ IQ Premium delivers a combination of portability and power that fits right in with your needs – wherever your journey takes you.1 It’s the next step forward from the partner who defined the high-end compact category … and continues to innovate to help you adapt to changing challenges.

GE takes the portable cardiac Ultrasound to the next level with the GE Vivid IQ Premium. The Vivid IQ Premium combines the best of the Vivid systems with the portability of a laptop, and while it may be a lightweight at less than 10lbs. – don’t let that fool you – it packs a heavyweight punch. With an intuitive touch interface that uses the same gestures you use on your smartphone, 4 transducer ports, up to 4 hours of battery life with the optional cart, and all the cardiac and shared service quantitative tools you’ve come to love on your current Vivid Ultrasounds, the Vivid IQ Premium will provide you top notch diagnostic imaging for years to come.

The enclosed, flat keyboard surface allows for simple clean up of spills and during routine cleaning – simply wipe down with a disinfectant solution and go about your day. The intuitive trackpad replaces the clunky trackball in the previous models and allows you to switch seamlessly between touchscreen and trackpad. With 4 transducer ports – 3 standard RS and 1 DLP port, your workflow has never been easier. GE offers 17 different probes including 2 ICE Catheters (8 and 10 French) and 4D TEE. Functionally, you will find a wide array of cardiac services such as Tissue Velocity Imaging, Tissue Tracking, AFI, Strain & Auto EF, to name a few. As a truly shared service device, the IQ also offers many shares service features such as Auto INT, Logiqview, BFI and Below.

  • Portable – 10% lighter, 10% thinner than Vivid q
  • Reliable – Rugged, cleanable design built for tough conditions
  • Easy to use – Intuitive touchscreen and fewer keystrokes
  • Convenient – New cart for better management of accessories
  • Advanced – 4D TEE, ICE 3 and other powerful capabilities

GE Vivid IQ Premium Specifications


  • Height: 64 mm (2.5”)
  • Width: 390 mm, (15.35”)
  • Depth: 362 mm (14.25”)
  • Weight with battery: 5.2 kg (11.5 lbs)

Electrical Power

  • Voltage: 100-240 VAC
  • Frequency: 50/60 Hz
  • Power: max. 130 VA
  • Operating System – Windows® 7

Cart Dimensions

  • Height: 835 – 1115 mm (32.9” – 43.9”)
  • Width: 524.9 mm (20.7”)
  • Depth: 552.3 mm (21.7”)
  • Weight: 41 kg (90 Ibs.)

Cart Design

  • Three USB ports
  • Six probe holders
  • Four probe cable hooks
  • Charge box (optional ) – to charge up to three batteries and to scan more than 180 min with four fully charged batteries
  • Multi-probe box (optional ) – three RS, one DLP to support 6VT-D

Display Monitor

  • 15.6” widescreen full High-Definition (HD) flicker-free LCD display with full touch ability
  • Ergonomic FlexFit design with adjustable typing angle and flexible view angle
  • Resolution: 1920 x 1080 pixels, full HD
  • Fold down and lock mechanism for transportation
  • The screen can be adjusted in different angles for scanning mode, typing mode, and closing, allowing to optimize the viewing angle in each position
  • Backlight adjustable

Automated Function Imaging

  • Assesses and quantifies ventricle longitudinal wall contraction ( both segmental and global) using speckle tracking technology. Presents the complete left ventricle with all segments in one quick, comprehensive bull’s- eye view. (optional on the VIVId IQ4D and the Vivid IQ Premium only)
