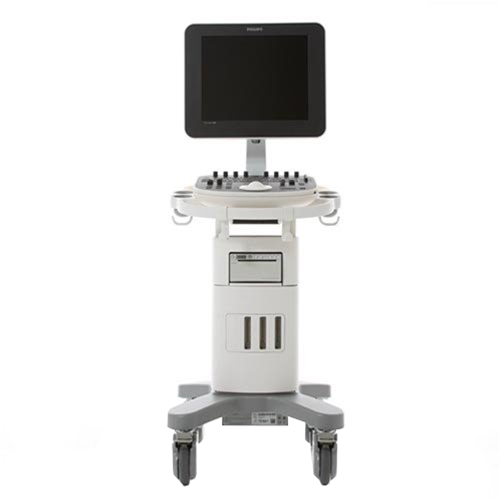

Philips ClearVue 350 Ultrasound Features
The Philips ClearVue 350 is a compact, lightweight Ultrasound system. The ClearVue 350 offers a smaller footprint with excellent image quality. The Ultrasound system can provide imaging for applications including; cardiac, vascular, Obstetrics, Gynecology, Abdominal, MSK, and small parts. The ClearVue 350 offers the Philips XRES technology that can enhance the image quality by reducing the number of artifacts to show more detail in the 2D, 3D, and 4D images. Along with iScan that can quickly optimize images with automatic scale and baseline adjustments. The Philips ClearVue is an energy-efficient machine with low power consumption. The ClearVue 350 is the Basic Version of the ClearVue the 550, 650, and 850 all offer more advanced settings and qualities.
- Simplified Interface
- Lightweight transducers
- Tissue Harmonics
- 2D, M-Mode, Anatomical M-Mode
- Trapezoidal Imaging
- PW/Color/Power Angio Doppler
- HPRF PW Doppler
- 3 USB Ports
- internal Hard Drive
- CW Doppler Option
- Duplex, Triplex
- HD Zoom
- XRES eXtreme Resolution speckle reduction imaging
- Cine loop review of ultrasound images
- Integrated multi-session CD/DVD Drive
- DICOM
- Ethernet port
- 3 probe ports
Philips ClearVue 350 Ultrasound Specifications
Dimensions
- Height: (adjustable, maximum) 1160 mm (45.7 in)
- Width: 520 mm (20.5 in)
- Depth: 584 mm (23.0 in)
- Control panel height: (non-adjustable) 837 mm (33.0 in)
- Weight: (with printer) 52 kg (115 lbs.), approx. 200 lbs. with packaging
General Specifications
- All-digital broadband beamformer
- 65,536 digitally-processed channels
- Depth to 30 cm (exam and transducer specific)
- Up to 272 dB Dynamic Range
Power
- Voltage: 100 to 240 VAC
- Frequency: 50 to 60 Hz
- Power: 450VA
- Power consumed: 300VA
- Heat dissipation: <700 BTUs/hour (fully loaded)
System Overview
- Monitor (inch): 17” LCD
- Tilt/Rotate Adjustable Monitor: Yes
- Monitor Resolution: 1280*1024
- Touch Screen (Inch): No
- Trackball or Trackpad: Trackball
- CP Back-Lighting: Yes
- Weight: 115 lbs (52kg)
- Probe Ports: 4
- Battery: No
- Sleep Mode (Quick Start): No
- Maximum Depth of Field: 30cm
- Minimum Depth of Field
- Cart (HCU): No
- Independent Steer & Lockable Wheels: Yes
Imaging Modes
- 2D, M mode: Yes
- M-color Flow Mode: Yes
- Anatomical M-mode: Yes
- Trapezoidal Mode: Yes
- Color, Power Angio, Pulse Wave Doppler: Yes
- Bi-directional Power (=HD FLOW): Yes
- SCW Doppler: Yes
- Tissue Doppler(Velocity) Imaging: Yes
- Freehand 3D: Yes
- Live 3/4D OB/GYN: Yes
- HD Live: No
- STIC (Spatio-Temporal Image Correlation): Yes
- Live 3D Echo: No
- Stress Echo: No
- Strain and Strain Rate (Cardiac): No
- B Flow: Yes
- Panoramic Imaging (=Logiq view): Yes
- Contrast Imaging – Cardiac: No
- Contrast Imaging – General Imaging: No
- Strain-based Elastography: Yes
- Shear Wave Elastography No
Connectivity
- DICOM 3.0: Yes
- DICOM SR_Cardiac: Yes
- DICOM SR_Vascular: Yes
- DICOM SR_OB/GYN: Yes
- JPEG, WMV, & AVI: Yes
- USB: Yes(3)
- HDD/SDD: 500GB
- DVD/CD RW: Yes
- Wireless LAN: Nos
