Sonosite 180 and Sonosite 180 Plus Ultrasound Features

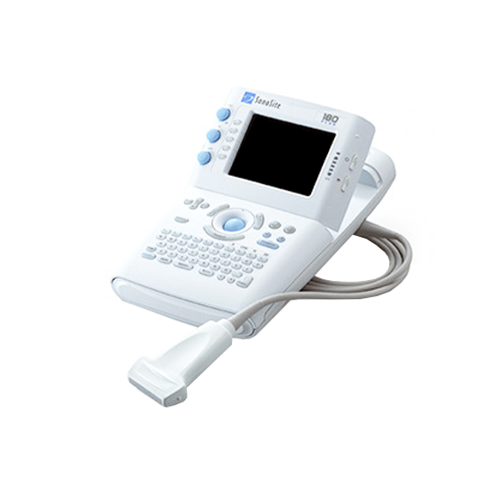

The Sonosite 180 / 180 Plus is a portable, handheld ultrasound system. The 180 System can be used for a wide range of applications and offers imaging modes such as 2D, PW Doppler, CW Doppler, Color Doppler, Tissue Harmonic Imaging, and M-Mode. The Sonosite 180 and 180 Plus systems can provide high-quality images and advanced diagnostic technologies. At only 6 pounds, the ultrasound system can easily be transported from place to place for patient imaging. The system is comparable with a variety of both array and curved array transducers and probes. The Sonosite 180 comes with a 5-inch TFT color viewing screen and a rechargeable battery that offers four hours of continuous scanning.
- 5-inch TFT Color liquid Display with contrast and brightness controls
- Imaging Modes: 2D, Color Doppler, PW, CW, THI, and M-Mode
- Easy-to-use controls
- Wide variety of probes and transducers that are comparable
- Storage for 199 images on the internet hard drive
- Direct Connectivity to a PC using RS-232 or USB Cable
- operates either on a rechargeable battery or AC Power
- A rechargeable battery offers 4 hours of use per charge
Sonosite 180 and Sonosite 180 Plus Specifications:
Dimensions
- Height: 13.3 in (33.8 cm)
- Width: 7.6 in (19.3 cm)
- Depth: 2.5 in (6.35 cm)
- Weight: 5.7 lbs (2.6 kg)
Power
- Operates via battery or AC power – 1.5 to 4 hours on fully charged, New Battery
- Battery: rechargeable lithium-ion
- AC: Via universal power adapter, 100-240 VAC, 50-60 Hz
Imaging Modes
- 2D
- Zoom
- Narrow imaging sector
- Color power Doppler
- Pulsed wave Doppler (option)
- Directional color power Doppler
- Continuous wave Doppler (option)
- M-Mode
- Tissue Harmonic Imaging (option)
Transducers
- Lightweight with rapid, pinless connection
- C60/5-2: 60-mm broadband (5-2 MHz) curved array for general-purpose abdominal, obstetric, and gynecologic applications
- ICT/7-4: 11-mm broadband (7-4 MHz) intracavitary array for obstetric gynecologic applications.
- C15/4-2: 15-mm broadband (4-2 MHz) array for transthoracic and abdominal imaging
- L25/10-5: 25-mm broadband (10-5 MHz) linear array for vascular access applications.
- L38/10-5: 38-mm broadband (10-5 MHz) linear array for breast, small parts, interventional, musculoskeletal, and vascular imaging.Biopsy guide available.
- C11/7-4: 11-mm broadband (7-4 MHz) curved array for a neonatal head, pediatric and neonatal abdomen, vascular access and assessment, and pediatric cardiac imaging
- HST/10-5: 25-mm broadband (10-5 MHz) linear array for intraoperative vascular, and superficial vascular imaging C8/8-5: 8-mm broadband (8-5 MHz) intracavitary array for prostate and indo-cavity exams. Stainless steel.
User Interface
- Controls: 2D, power Doppler, pulsed wave Doppler, continuous wave Doppler, M-mode, near gain, far gain, overall gain, save, print, freeze, cine review, text/picto, select, measure, optimize, depth, zoom, patient
- Narrow Imaging Sector feature on 2D and power Doppler modes User-defined labels – Integrated 5″ (12.7 cm) TFT color Liquid Crystal Display with brightness and contrast controls
- Integrated trackball for navigation
- Alpha-numeric keyboard
- System optimization presets for different patient body types
System Parameters
- System dynamic range: approximately 140 dB
- Frame rate: up to 100 frames/second Image Storage and Cine
- Storage: internal 119 image memory (maximum) for off-line printing and review
- Cine: image retained for frame-by-frame viewing
- PC Direct Connectivity: connect directly to a PC using a cable link from a serial port (RS-232 or USB option) to a PC with SiteLink™ Image Manager software to download high-resolution bitmap images
Clinical Analysis Package
- OB calculations with report package via standard tables
- Cardiac calculation
