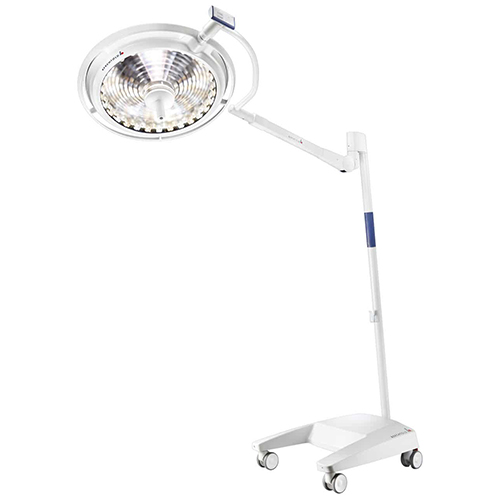

Stryker Berchtold Chromophare F 528 Features
The Stryker Berchtold Chromophare F 528 Combines innovative and revolutionary proven reflector technology with the newest LED technology for reflection and glare-free light. The Chromophare F 528 reduces Color-Cast shadows to a minimum in the surgical field. This surgical light is mixed in the reflector within the light head and generates a light without outstanding spectral properties.
- Designed to be simple and effective.
- Excellent light quality with hybrid light technology.
- Four different selectable color temperatures.
- Average LED lifetime of 40,000 hours.
- 160,000 Lux.
Stryker Berchtold Chromophare F 528 Specifications
F 528 Lighthead
- Light Head Diameter: 65 cm
- Light Intensity: 125,000 Lux
- Brightness Controls: 10-100%
- Lightfield Diameter: 19-30 cm
- Depth of Illumination (L1+L2): 90-150 cm
- Color Rendering Index (Ra): 96
- Color Temperature (Standard): 4,500 K
- Color Select: 3,600-5,000 K
- Lights: 88 LEDs
- Ø LED Service Life 40,000 h
- Total Radiant Power at Max. Light Intensity: 460 W/m2
- Power Consumption Light Head: 65 W 24-28 V DC
- Electricity: 100/120/127 V(AC); 220/230/240 V(AC)
- Radiant Energy: 3.7 mW/m2 Lux
- SWKI Degree of Protection (Laminar Flow): Class 5
- Mounting Options: Ceiling, Wall, Mobile
- Certificates: CE, UL
