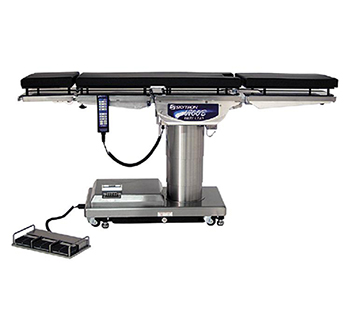

Skytron 6700 Features
The Skytron 6700 series surgical table provides great imaging access for even today’s most demanding environments. The Skytron 6700 Series can lift up to 1200 lbs, and articulate up to 1000 lbs making this a great option for bariatric surgeries. This surgical table is designed to cater to even the limiting mobility patients and features an “ultra-low” position of 23-inches. Using its 210º table top rotation, clinicians can gain enhanced C-arm and surgical microscope access and more leg room for a seated surgeon.
- General Purpose/Bariatric Surgical Table
- Optional Infrared (IR) Remote Wireless Control
- 1,200 lb. lift & 1000 lb. articulate capacity
- 210º Top Rotation
- Auto Beach Chair Position
- 44″ max./23″ min. table height
- Power kidney bridge
- Removable back & leg sections
Skytron 6700 Specifications
Dimensions
- Height: 23″ to 44″ (58.4 cm to 111.7 cm)
- Width (Without Siderails): 20″ (50.8 cm)
- Width (With Siderails): 22″ (55.8 cm)
Table Movements
Table Height
- Raised: 44″ (111.7 cm)
- Lowered: 23″ (58.4 cm)
Table Tilts
- Trendelenburg: 30º
- Reverse Trendelenburg: 30º
- Lateral Tilt: ±30º
Table Rotation
- Rotation: 210º
Head Section
- Raise: 0-15º
- Lower: 0-90º
Back Section
- Raise: 90º
- Lower: 40º
Seat Section
- Flex: 0-40º
- Reflex: 0-90º
Leg Section
- Raise: Horizontal
- Lower: 100º
Kidney Bridge
- Elevation: 6″ (15.2 cm)
Weight Limit
- Max (Lift): 1,200 lbs (544.3 kg)
- Max (Articulation): 1,000 lbs (453.5 kg)
