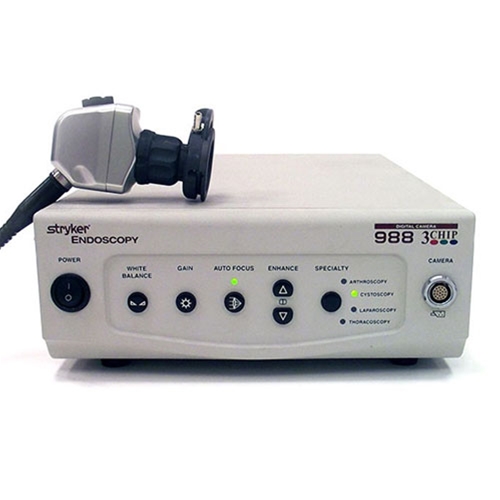

Stryker 988 Camera Video
The Stryker 988 Endoscopic Video Camera is designed for all types of video endoscopy applications. The Model 988 camera, with the proper coupler, can be used with most endoscopes or arthroscopes. Stryker Endoscopy’s line of focusing camera couplers maximizes the surgeon’s television viewing area for various endoscope sizes and applications. The light sensitivity and color reproduction of the Stryker Endoscopy system produces excellent picture quality
- Remote Accessory Controls
- Rear Panel Connections
- Flex and AG Filter Controls
- White Balance, Gain, Light / Zoom and Auto Focus Controls
Stryker 988 Camera System Specifications
Dimensions
- Camera Control Unit: 9.8”w x 4.0”h x 15”d (24.8cm w X 10.1cm h X 38.1cm d)
- Camera Head Cable to Camera Control Unit: 10 foot (3m) sealed cable or 21.3 foot (6.5m) sealed cable (sensed by CCU)
Video Outputs
- Composite: One NTSC standard 1.0V P-P into 75 Ohms
- Digital: Two Digital Video Interface (DVI) 1024X768 XGA resolution
- Connector: BNC Coaxial
- Connector: 29-pin DVI-I
- Component: Two S-VHS Y-1.0V P-P C-0.29V P-P
- Digital: One Serial Digital Interface (SDI) SMPTE-259M
- Connector: 4-Pin S-VHS
- Connector: BNC Coaxial
Imaging System
- 1/3” Interline Transfer, EX-view HAD CCD
- 768 (H) x 494 (V) pixels
Scanning System
- 2:1 Interlaced
- Horizontal: 15.734 kHz
- Vertical: 59.94 Hz
Resolution
- Horizontal: 950 lines
- Vertical: 500 lines
Signal to Noise Ratio
- 72 dB
Mounting
- Endoscope Eyepiece used with coupler
- C-mount camera head used with C-mount scopes (C-mount 1”-32UN-2A)
Minimum Illumination
- < 1.0 Lux
Auto Shutter Range
- 1/60 to 1/50,000 second
Power
- Power Consumption: approx. 30 W
- Input Voltage Range: 100/120 VAC 50/60 Hz
