Stryker 16L Insufflator

Stryker 16L Insufflator

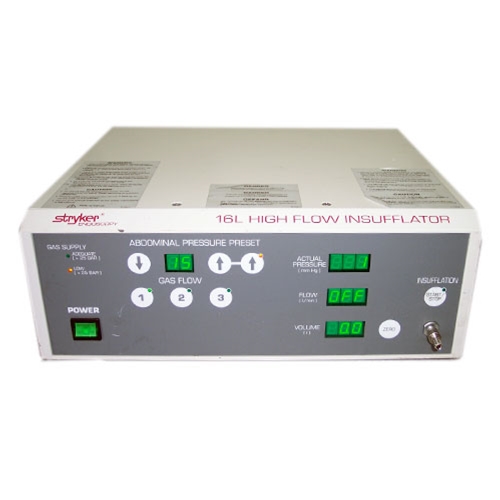

The Stryker 16L High Flow Insufflator is a compact and durable endoscopic tool with precise pressure measurement to 31 mm Hg and a selection of three gas flow rates for optimal operation.

This device has four digital displays that indicate desired pressure, actual pressure, current flow rate, and volume of CO2 consumed. Interruption of operation is processed by the Start/Stop button.

• Dimensions 360 × 150 × 300 mm
• Weight: 9 kg
• Insufflation Medium: CO2
• 80 bar bottle pressure

Insufflation Rate

• Rate 1: approx. 1.2 L/min
• Rate 2: approx. 6.0 L/min
• Rate 3: approx. 16.0 L/min

Working Pressure

0 – 31 mm Hg, continuously variable, pre-selectable and limitable
