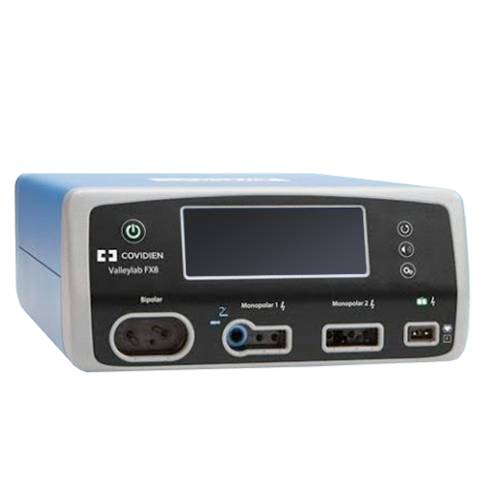

Covidien ValleyLab FX8

Covidien ValleyLab FX8 Features

The Covidien Valleylab FX8 is an energy source controlled by an electrosurgical unit. The Valleylab FX8 energy platform is powered by TissueTect, a tissue-sensing technology that can adjust based on the type of tissue it detects. The FX8 is the predecessor to the Medtronic Valleylab FT10 Energy Platform. The Valleylab energy source offers cut, coag, and soft coag modes. Additionally, the energy source provides shared coag, which allows two surgeons to work simultaneously on the same patient.

• Valleylab mode provides a unique combination of monopolar hemostasis and division
• TissueFect technology to ensure the precise energy is delivered for the correct type of tissue
• shared coag mode allows for two surgeons to work at once on a patient
• Precise delivery of monopolar and bipolar energy
• Power control during monopolar energy delivery that’s five times better than the Force Triad Energy Platform
• Tissue monitoring that’s 2600 times faster than the Force FX Electrosurgical Generator

Covidien ValleyLab FX8 Electrosurgical Unit Specifications

Dimensions

• Height: 14.6 cm (5.73 in)
• Width: 33.5 cm (13.18in)
• Length: 43.6cm (17.15in)
• Weight: 8.8kg (19.5lb)

General

• Output configuration: Isolated output
• Cooling: Natural convection and fan
• Display: 15.7 cm (6.2 in) LCD touchscreen
• Enclosure: Magnesium
• Mounting
  • Valleylab™ universal generator cart (VLFTCRT)
  • Operating room boom systems
  • Any stable, flat surface such as a table or cart top

Operating Parameters

• Ambient temperature range: 10°C to 40°C (50°F to 104°F)
• Relative humidity: 15% to 85% non-condensing
• Atmospheric pressure: 700 to 1060 millibars

Temperature and Storage

• Ambient temperature range: -10°C to 60°C (14°F to 140°F)
• Relative humidity: 15% to 90% non-condensing
• Atmospheric pressure: 500 to 1060 millibars

Input Power 100-127 VACe

• Line Ranges
  • Line Voltage Full Regulation Range: 90–140 VAC
  • Line Frequency: 47–63 Hz
• Max VA Nominal Line Voltage: 660 VA
• Max Mains Current: 6.6 ARMS
• Max Heat Dissipation 180 W
• Fuses
  • 10 A
  • Fuses (2) – 5 mm x 20 mm
  • 10 A, 250 V fast blow

Input Power 220-240 VAC

• Line Ranges
  • Line Voltage Full Regulation Range: 198-264 VAC
  • Line Frequency: 47–63 Hz
• Max VA Nominal Line Voltage: 660 VA
• Max Mains Current: 3.0 ARMS
• Max Heat Dissipation 180 W
• Fuses
  • 6.3 A
  • Fuses (2) – 5 mm x 20 mm
  • 6.3 A, 250 V fast blow
