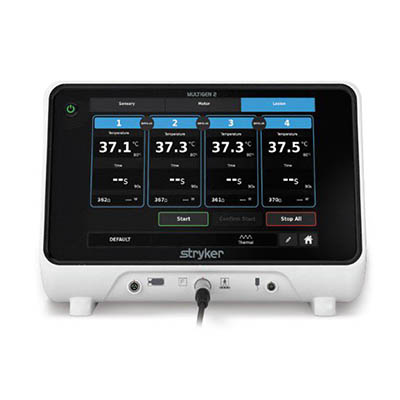

Stryker MutiGen 2

Stryker MultiGen 2 Radiofrequency Generator Features

Radiofrequency ablation is now more efficient and reliable than ever before. Enter the next generation and discover the control and confidence no other technology provides.

• Maximize your time and schedule
  Ramp up to temperature faster and start your procedure with a single touch of a button. Create a strip lesion without removing electrodes. Resolve errors in one step, without ever stopping the procedure. It’s about time.
• Take command
  Choose the order of lesions with independently run channels. Perform at your own pace with flexible stimulation controls. With the MultiGen 2 RF Generator, you can customize your procedure based on patient needs, procedural goals, and personal preferences.
• IEmbrace a modern mindset
  The MultiGen 2 RF Generator is appointed with modern features, like an ultra-responsive touchscreen, a USB port for saving and transferring presets, and a lifecycle tracker for electrode use.

Stryker MultiGen 2 Radiofrequency Generator Specifications

Dimensions

• Length: 50 to 50 mm
• Diameter: 18to 22 G

Temperature Range

• 37 °C – 95 °C

Temperature Accuracy

• 37 °C – 95 °C +-2°C

Lesion Time

• e 0-999 seconds

Stimulation Frequency

• Sensory = 50 Hz
• Motor = 2 Hz

Output Energy

• 0-100 watts

Output Waveform(s)

• 500kHz sinusoid

Type of User Interface

• Touchscreen graphical user interface
