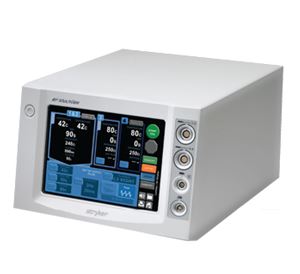

Stryker MultiGen Radiofrequency Generator Features
The Stryker MultiGen® Radiofrequency Generator is a combination of technologies that provide accuracy, is easy to use and capable of handling up to four lesions simultaneously with independent control. With multiple options for customizing procedures, MultiGen® Radiofrequency Generator also has software safety checks and monopolar nitinol electrodes.
- Unmatched capabilities. Unsurpassed simplicity.
- Multi-Lesioning: Handles up to 4 lesions simultaneously and with independent control; also provides multiple and individual start options to deliver RF energy
- Parallel Bipolar: allows 2 parallel bipolar procedures simultaneously with thermal and pulsed options to reduce overall time of SI joint procedures with larger lesion production
- Intradiscal Lesioning (IDL): offers pre-programmed time and temperature step profiles with adjustment capabilities on the fly
- Procedure profiles: facet denervation, medial branch Rhizotomy, sacroiliac denervation, percutaneous chordotomy, peripheral neuralgia, ramus communicants
Stryker MultiGen Radiofrequency Generator Specifications
Dimensions
- 12.5 in. [317.5mm] width
- 8 in. [203.2mm] height
- 15 in. [381mm] depth)
Power Supply
- 100–120 –V 50–60 Hz
- 230 V–50 HzA
- 50-watt maximum power into 100–ohm resistive load
Display Screen
- 5.5 in. x 8 in. LCD, wide 160° minimum viewing angle
Measurement range
- 0 ohm–2000 ohms
Accuracy
- Below 100 ohms ± 30 ohms; above 100 ohms ± 10%
- Operating range: 35 ohms ‹ stimulation ‹1800 ohms; 35 ohms ‹ lesion ‹ 1800 ohms
Temperature
- RF procedure: Accuracy +4° –2° C from 37° to 95° C
- IDL procedure: Accuracy +4° –2° C from 37° to 95° C
Lesion Time
- 0 to 999 sec; default adjustable at system and file level
RF Frequency
- Conventional heat lesion: 1 MHz, accuracy ± 10%, DualWaveTM
- Waveform: aperiodic damped sinusoid
- Pulse mode: 1 MHz sine wave with selected pulse frequency and on time, accuracy ± 10%
