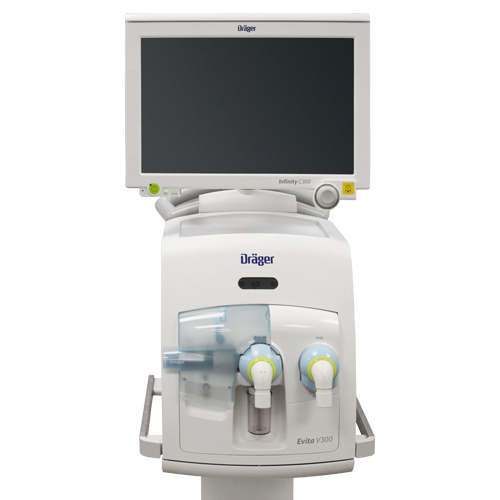

Drager Evita V300

Características del Ventilator Drager Evita V300

The Drager Evita V300 offers high quality ventilation. It can easily be adjusted to different height and is a versatile tool for your hospital. The V300 can be integrated into an intensive care supply unit or it can be used during transport. The device can supply a patient with breathing gas flow of up to 250L/min, even at high ventilation pressure.

Versátil y escalable

• Ventilation for adults, children and neonates: invasive, non-invasive and with O2-therapy
• Volume- or pressure-controlled ventilation, spontaneous breathing
• Independence due to optional gas and power supply units: GS500 (compressed air), PS500 (power),TSU (gas)
• Flexible workstation integration by attaching to supply unit or trolley
• Individually adjustable configurations easily transferred via USB
• Context-sensitive help function facilitates setting the ventilation parameters and explains device functions

Alta calidad de ventilación

• Automatic tube compensation (ATC) compensates for artificial airway resistance
• Automatic leak compensation with invasive and non-invasive ventilation
• AutoFlow in volume-controlled ventilation provides the tidal volume at the lowest possible pressure
• PC-APRV with optional AutoRelease enables spontaneous breathing with continuous positive airway
• pressure and short-term pressure relief
• Breathing deeply and freely thanks to AutoFlow, Volume Guarantee (VG) or SPN-CPAP
• Various spontaneous breathing support, e.g.: VC-MMV, SPN-PPS, Volume Support (VS), Pressure Support (PS)
• Advanced analysis tools such as trends or CO2 monitoring
• Automatic weaning with SmartCare/PS
• Graphical representation of breathing resistance and elasticity with Smart Pulmonary View

Especificaciones del Ventilador Drager Evita V300

Dimensiones

• (W x H x D) Evita V300 and Infinity C300 390 mm x 680 mm x 410 mm (15.4 in x 26.8 in x 16.1 in)
• Evita V300 and Infinity C300 on trolley 577 mm x 1400 mm x 677 mm (22.7 in x 55.1 in x 26.7 in)

La carga

• Evita V300 and Infinity C300 approx. 24 kg (52.9 lbs)
• Evita V300 and Infinity C300 on trolley approx. 58 kg (127.9 lbs) PS500 approx. 27 kg (59.5 lbs)
• GS500 approx. 10.5 kg (23 lbs)
• Mounting: Supporting frame 1,65 kg (3.64 lbs)

Infinity C300

• Diagonal screen size Infinity C300 15,4”
• TFT color touch screen
• Input / Output ports (at Infinity C300) ‒ 2 external RS232 (9-pin) connectors
• 2 USB ports (on the back panel)
• 1 USB port (on the side panel)
• 1 DVI (not enabled)
• 1 LAN port

La energía

• Mains power connection 100 V to 240 V, 50/60 Hz

Measured values displayed

• Airway pressure measurement Plateau pressure Pplat Pos. end-exp. pressure PEEP
• Peak inspiratory pressure PIP
• Mean airway pressure Pmean
• Min. airway pressure Pmin
• Range –60 to 120 mbar (or hPa or cmH2O)

Flow Measurement

• Minute volume measurement MVe, MVi, MVemand, MVespon, MV Range 0 to 99 L/min BTPS
• Tidal volume measurement VT, VTimand, VTemand, VTispon, Vtrap Range 0 to 5500 mL BTPS
• Frequency measurement Breathing frequency RR
• Spontaneous breathing frequency RRspon
• Range 0/min to 300/min
• O2 measurement (inspiratory side) Inspiratory O2 concentration FiO2 Range 18 to 100 Vol%
• CO2 measurement in main flow (adults and pediatric patients only) (optional)
• End-expiratory CO2 concentration etCO2
• Range 0 to 100 mmHg)
