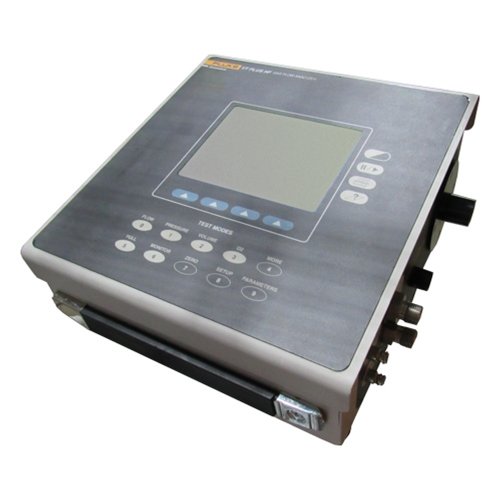

Fluke Biomedical VT Plus HF Gas-Flow Ventilator Analyzer

Fluke Biomedical VT Plus HF Gas-Flow Ventilator Analyzer Features

The Fluke Biomedical VT Plus HF is a gas-flow analyzer that can be used to test mechanical and high-frequency ventilators. It has the ability to measure both high-flow, low-flow, and pressure. The VT Plus HF replaces the need to use gauges and flow meters by measuring up to 21 different ventilator parameters. The measurements can be displayed on the screen or be printed.

• Capable of graphing minimum, maximum, average, and absolute measurements for all parameters.
• Can be operated with precision test lungs to ensure ventilators are calibrated.
• Bi-directional flow, pressure, volume, oxygen concentration, and pressure measurements.
• High-flow, low-flow, and pressure measurement capability.
• Can display 21 different ventilator parameters.

VT Plus HF Specifications

Dimensions

• Height: 5” (12.7 cm)
• Width: 10” (25.4 cm)
• Depth: 10” (25.4 cm)
• Weight: 10lbs (4.53 kg)

General

• Power: 100 V ac to 240 V ac, 50/60 Hz
• Maximum over-voltage: 264 V ac
• Power consumption: < 132 V A
• Fuse rating: 0.5 A, slow blow
• Display: 320 x 240 LCD with CFL backlight
• Viewing area: 10.1 cm x 8.2 cm (3 in x 4 in), blue on white background
• Operational Modes: Manual mode for simple tests or troubleshooting; computer-control mode, using RS-232 serial port for special applications; use of VT PLUS HF with VT for Windows software for recording graphs and logging data to a computer
• Output ports: RS-232 serial port, and parallel-printer port

Oxygen Measurement

• Range: 0 to 100%
• Accuracy: ± 2 % FSO
• Resolution: 0.1% O2
• Transducer location: Internal

Gas

• Compatibility: Air, O2, CO2, N2, N2O, He, mixtures, or user-defined
• Reference units: ATP, STPD0, STPD21, and BTPS
