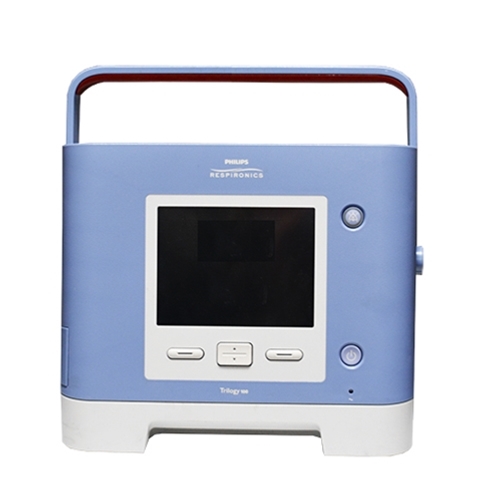

Philips Respironics Trilogy 200

Ventiladores

Equipo Médico Philips - Soma Technology, Inc.

Descripción

Philips Respironics Trilogy 200 Features

The Philips Respironics Trilogy 200 portable ventilator is lightweight and easy to use. The Trilogy 200 was designed for the home, hospital, and alternative care sites to provide invasive and noninvasive ventilator support for a wide range of pediatric and adult patients. Compared to the Trilogy 100, the Trilogy 200 has all the features of the 100, plus extra triggering sensitivity utilizing a proximal flow sensor. The extra triggering sensitivity decreases the work of breathing that provides increased comfort.

  • Easy-to-read and navigate screens.
  • Multiple prescription settings and on-screen waveforms to help optimize treatment.
  • Compact size allows for greater mobility.
  • Pressure and volume control features provide more types of therapy using just one device.
  • Use of multiple modes gives the caregiver greater flexibility in how care can be provided.

Philips Respironics Trilogy 200 Specifications

Dimensions

  • Height: 9.5” (23.52 cm)
  • Width: 11.2” (28.45 cm)
  • Depth: 6.6” (16.68 cm)
  • Weight: 11 lbs (5 kg)

Controls

  • Circuit types: Active Flow; Active with PAP; Passive
  • Ventilation types: Pressure and Volume
  • Volume modes: AC; SIMV (w/PS); CV; AC-MPV
  • Pressure modes: CPAP; S; S/T; T; PC-SIMV (w/PS); PC; PC-MPV; AVAPS-EA
  • IPAP: 4 to 50 cm H2O
  • PEEP/EPAP for active circuits: 0 to 25 cm H2O
  • PEEP/EPAP for passive circuits: 4 to 25 cm H2O
  • CPAP for passive circuits: 4 to 20 cm H2O
  • Pressure support differential: 0 to 40 cm H2O

General

  • Tidal volume: 0 to 2000 ml
  • Breath rate: 0 to 60 BPM for AC mode; 1 to 60 BPM for all other modes
  • Inspiratory time: 0.3 to 5.0 sec
  • Rise time: 1 to 6
  • Ramp start pressure:
    • 0 to 25 cm H2O for active circuits
    • 4 to 25 cm H2O for passive circuits
    • 4 to 19 cm H2O in CPAP
  • Ramp Length: Off; 5 to 45 min
  • Flex: Off; 1 to 3
  • Flow Trigger sensitivity: 1 to 9 l/min
  • Flow Cycle: 10 to 90 %
  • Apnea Rate: 4 to 60 BPM
  • Apnea Rate: 4 to 60 BPM

Measured Parameters

  • Respiratory Rate: 0 to 80 BPM
  • Minute Ventilation: 0 to 99 l/min
  • Vte/Vti: 0 to 2000 ml
  • Leak Rate: 0 to 2000 l/min
  • Peak Inspiratory Flow: 0 to 2000 l/min
  • Peak Inspiratory Pressure: 0 to 99 cm H2O
  • Mean Airway Pressure: 0 to 99 cm H2O
  • % Patient Triggered Breaths: 0 to 100 %
  • I:E ratio: 9.9:1 to 1:9.9
