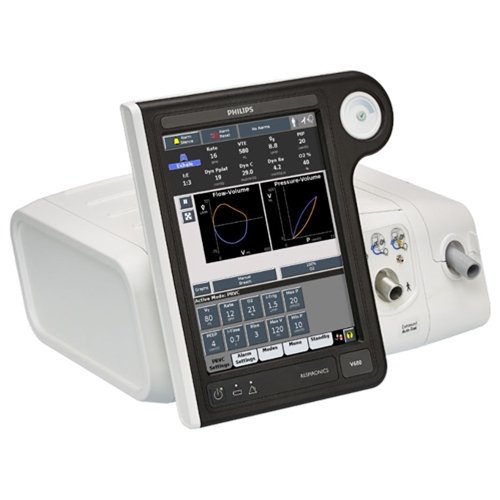

The Philips Respironics V680 is a critical care ventilator that combined a single-limb NIV with a fully-featured dual-limb system to deliver life support for critically ill patients in the ICU. The Respironics V680 can easily and quickly switch from invasive to noninvasive ventilation. This Philips ventilator provides continuous measurements of dynamic resistance, compliance, elastance, and plateau pressure in both single and dual-limb invasive and noninvasive modes.
- Combines the proven performance of the Philips V60 noninvasive ventilator with an invasive ventilator for ICU patients.
- Same look and feel as the Respironics V60 Ventilator.
- Built-in apnea backup for both invasive and noninvasive spontaneous modes.
- 4-hour battery backup.
- Uses Auto-Trak technology to automatically adapt to your patient’s breathing pattern.
- Supports adult and pediatric patients.
Philips Respironics V680 Specifications
Dimensions
- Height: 13.5” (34.2 cm)
- Width: 18” (45.7 cm)
- Depth: 17.1” (43.4 cm)
- Weight: 27 lbs (12.3 kg)
Patient Types
- Adult: >20 kg
- Pediatric: 5 to 20 kg
Pneumatics
- High-pressure oxygen supply: 2.76 to 6.00 bar / 276 to 600 kPa / 40 to 87 psig
- Flow: 175 SLPM
- Air Supply: Integrated centrifugal-flow compressor
- Exhalation cartridge (eSYS)
- Flow sensor: Exhaled gas flow accuracy: +/- (0.1 SLPM + 5% of re ading)
- Diaphragm/seat area: 6.6 cm2
- Diaphragm/seat diameter: 29 mm
Oxygen Sensor
- Accuracy: +/-5% (calibrated)
- T90 Response: 50 sec for VT = 50 mL; 21 sec for VT = 1,000 mL
Ventilation Modes
- CPAP (Continuous Positive Airway Pressure)
- S/T (Spontaneous with Timed Backup)
- PCV (Pressure Control Ventilation)
- Apnea mode (available in CPAP)
- AVAPS+ (Average Volume Assured Pressure Support)
- PPV (Proportional Pressure Ventilation)
- A/C-VCV (Assist/Control-Volume Control Ventilation)
- A/C-PCV (Assist/Control-Pressure Control Ventilation)
- SIMV-VCV (Synchronized Intermittent Mandatory Ventilation Volume Control Ventilation)
- SIMV-PCV (Synchronized Intermittent Mandatory Ventilation Pressure Control Ventilation)
- PSV (Pressure Support Ventilation)
- PRVC (Pressure Regulated Volume Control)
- Apnea mode (available in SIMV and PSV)
Waveforms Window
- Pressure Waveform: 0 to 70 cmH2O
- Flow Waveform: -240 to 240 L/min BTPS
- Volume Waveform: 0 to 3,500 mL BTPS
- F/V (flow/volume) Loop
- Flow: +/-10 to +/-240 L/min
- Volume: 50 to 3,500 mL
- P/V (pressure/volume) Loop
- Pressure: Above zero: 10 to 80 cmH2O; Below zero: 0 to -15 cmH2O
- Volume: 50 to 3,500 mL
Single-Limb Settings
- CPAP: 4 to 25 cmH2O
- EPAP: 4 to 25 cmH2O
- IPAP: 4 to 40 cmH2O
- I-Time (Inspiratory Time): 0.30 to 3.00 secs
- Ramp Time: Off, 5 to 45 min
- Rate (Respiratory Rate): 4 to 80 BPM
- Rise (Rise Time): 1 to 5
- Triggering and Cycling: Auto-adaptive (Auto-Trak+)
- O2 % (Oxygen Percent): 21 to 100%
- Apnea Mode (available in CPAP mode): Allows apnea mode settings independent of the primary mode
- C-Flex: Off, 1 to 3
- Max ∆P/min (AVAPS Max P change/min): 1.0 to 5.0 cmH2O/min
- Max P (AVAPS max IPAP): 6 to 40 cmH2O
- Min P (AVAPS min IPAP): 5 to 30 cmH2O
- VT (AVAPS Target Tidal Volume): 50 to 2,000 mL BTPS
- Max E: 0 to 100 cmH2O/L
- Max R: 0 to 50 cmH2O/L/s
- PPV%: 0 to 100%
- Max P (PPV max pressure limit): 5 to 40 cmH2O
- Max V (PPV max volume limit): 200 to 3,500 mL
Dual-Limb Settings
- VT (Tidal Volume in VCV and PRVC modes): 50 to 2,000 mL BTPS
- Rate (Respiratory Rate): 1 to 80 BPM
- I-Time (Inspiratory Time): 0.30 to 5.00 secs
- Rise (Rise Time): 1 to 5
- I-Trig (Flow Trigger): 0.5 to 20 L/min, Off
- E-Cycle (% of Peak Flow): 10 to 80%
- Flow Pattern: Square, Descending Ramp
- PC (Pressure Control Target above PEEP): 1 to 65 cmH2O
- PS (Pressure Above PEEP): Off, 2 to 65 cmH2O
- PEEP (End Expiratory Pressure): 0 to 40 cmH2O
- Sigh (1.5 times Tidal Volume): On, Off
- O2 % (Oxygen Percent): 21 to 100%
- Max P (PRVC maximum pressure limit): 3 to 65 cmH2O
- Max V (PRVC maximumvolume limit): 55 to 2,500 mL
- Min P (PRVC minimum pressure limit): 2 to 64 cmH2O
- Apnea Mode (available in PSV and SIMV modes): Allows apnea mode settings
