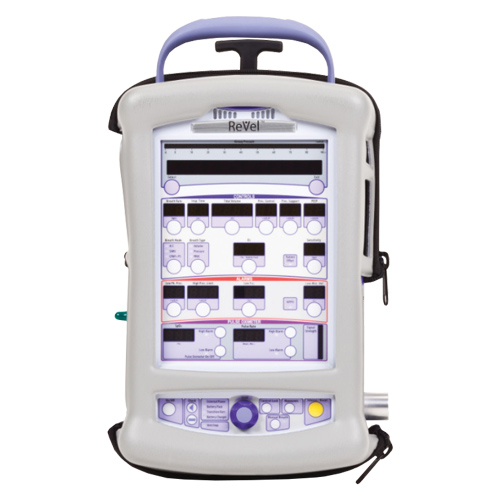

The Vyaire Carefusion ReVel is an emergency transport ventilator. The ReVel ventilator can be used on both pediatric and adult patients (minimum of 11 lbs or 5kg). Delivering invasive and non-invasive ventilator therapy. To help provide the most accurate and reliable ventilation the ReVal features ActiveCore – which can deliver gases that are needed during the patient’s ventilation in a safe manner. Offering continuous ventilation care even in the roughest conditions.
- The user interface is based on the LTV series platform.
- Weighs only 9.5 lbs.
- Small size and ergonomic design.
- Supports invasive and noninvasive transport ventilation.
- Hot-swappable 4-hour battery.
- High-performance blower technology delivers 180 LPM of flow at 100 cmH2O.
Vyaire Carefusion ReVel Specifications
Dimensions
- Height: 11.3” (28.7 cm)
- Width: 7.1” (18 cm)
- Depth: 3.3” (8.4 cm)
- Weight: 9.5 lbs (4.3 kg)
Breath Types
- Volume control, pressure control, pressure regulated volume control (PRVC), pressure regulated volume support (PRVS), pressure support (PS), spontaneous
Breath Modes
- Assist control, synchronized intermittent mandatory ventilation (SIMV), continuous positive airway pressure (CPAP) plus PS, noninvasive positive pressure ventilation (NPPV), apnea backup
Maneuver
- Expiratory Hold: 0–6 sec
- Inspiratory Hold: 0–6 sec
PTM Patient and Ventilator Data
- Waveform: PTM display only
- Loop: PTM display only
- Trending: 24-hr trend of all patient monitors
Maneuver Monitor
- Auto positive end-expiratory pressure (PEEP): 0–99 cmH2O
- Delta pressure (dPaw): 1–99 cmH2O
- Expiratory pressure (Pexp): 0–100 cmH2O
- Plateau pressure (Pplat): 1–99 cmH2O
- Static lung compliance (Cstatic): 1–999 mL/cmH2O
LED Display
- Display Type: 12 5×7 dot matrix
- Resolution: 49 bicolor manometer
- Viewable Size: 7 segment
Procedure
- O2 Flush: Delivers a pre-selected increase in O2 percentage for a pre-selected duration
- Nebulization: Provides a flow of 6 LPM ± 10% O2 to drive a nebulizer (optional); configurable as continuous or inspiration only
- Spontaneous Breathing Trial (SBT): During the SBT procedure, delivers ventilation in CPAP +PS mode with the selected SBT control settings in Extended Features; calculates f/Vt
Battery
- Type: Lithium-ion
- Duration: 4-hr internal battery (hot-swappable)
Control Setting
- Bias Flow: 3–10 LPM
- Breath Rate: 1–80 BPM
- Breath Type: Volume Control, Pressure Control, PRVC
- Flow Termination: 10–40% of peak flow
- High Pressure: Alarm delay 0, 1, 2 breaths
- Inspiratory Time: 0.3–9.9 sec
- Leak Comp: On, Off
- LPP Alarm: Control All Breaths, Control Only
- NPPV: On, Off
- O2%: LPS, 21–100
- PEEP: 0–20 cmH2O
- Pressure Control: 1–99 cmH2O
- PS: Off, 1–60 cmH2O
- Pressure Trigger: 1–20 below PEEP
- Pressure Control Flow Termination: On, Off
- Safety Valve Delta Pressure: 5–30 cmH2O
- Flow Sensitivity: P, 1–9 LPM
- Tidal Volume: 50–2,000 mL
- Time Termination: 0.3–3 sec
- Ventilation Mode: Assist/Control (A/C), SIMV, CPAP plus PS
- SBT O2%: LPS, 21–100
- SBT PEEP: 0–20 cmH2O
- SBT PS: “- -” (off), 1–30 cmH2O
- SBT Time: 15–120 min
- SBT f/Vt Display: “On,” “Off”
