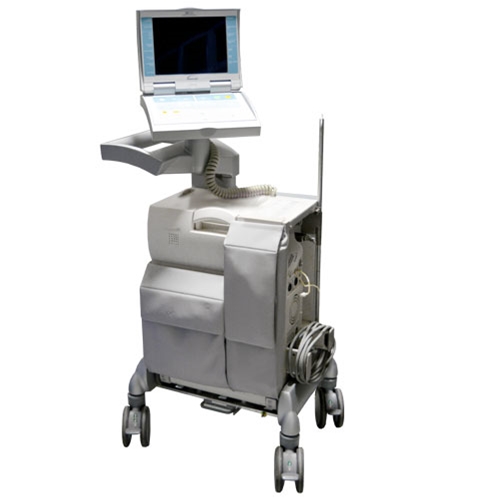

Maquet Datascope CS100i

The Maquet Datascope CS100i is an Intra-Aortic balloon pump that comes with a one button startup. The Datascope can be customized to fit each individual need. The Maquet Datascope CS100 comes with three different operating modes; Automatic, Semi-automatic and Manual, making it easy to switch from one to the when needed.

The Datascope CS100 was designed with a with a fold able and detachable laptop style display and screen making it easier for care givers to adjust the pump and monitor the patient remotely. The full color display shows the balloon waveform and inflation markers making it ideal for Critical Care unit and Operating Rooms.

  • Automatically evaluates and selects optimal trigger source and lead
  • Sets inflation at the dicrotic notch and deflates IAB at the start of systole
  • Responds to changes in signal quality by selecting new trigger source

Automated trigger source and timing management provide continuous, consistent support for your patient.

Maquet Datascope CS 100i Specifications

Dimensions

  • Height: 30 in (76.2 cm)
  • Width: 22.5 in (57.2 cm)
  • Depth: 13.2 in (33.5 cm)
  • On Cart
    • Height: 42.2 in (114.8 cm)
    • Width: 17.6 in (44.7 cm)
    • Depth: 23.4 in ( 59.4 cm)
  • Off Cart
    • Height: 28.2 in (71.6 cm)
    • Width: 11.3 in (28.7 cm)
    • Depth: 21.5 in ( 54.6 cm)
  • Monitor weight: 9.5 lbs (4.3 kg)
  • Console weight: 133.2 lbs ( 60.4 kg)

Color Display

  • Width:8.3 in (21cm)
  • Height: 6.2 in (15.8 cm)
  • viewing angle:
    • Up: 45°
    • Down 55°
    • Right 70°
    • Left 70°
    • Rotates 330°
    • Tilts180°
  • Detachable Laptop-like closure for storage and protection

Power

  • Mains Voltage: 100-120 VAC ± 10% or 220-240 VAC ± 10%
  • Mains Frequency: 50/60 Hz ± 3 Hz
  • Internal Battery: 24 VDC (nominal), 17.2 Amp-hour, 3 hrs.(approx. @ 90 bpm)
  • Battery Type: Maintenance free; Sealed lead-acid

General information

  • ECG Gain (default): 1 V output per 1 mV input ±5% (waveform automatically scaled to occupy ECG display window)
  • Gain (variable): 0.15 to 3.0 cm/mV ±20% (autoscaling disabled)
  • Frequency Response: 0.5-12 Hz (display); 0.5-135 Hz (Output to Monitor)
  • Defibrillator Protection: Discharge levels 360 J (trace returns to screen in 5 sec. max)

Operating Conditions

  • Operating Temperature: 10°C – 40°C
  • Operating Humidity: 5 – 95% (R.H.) non-condensing
  • Operating Altitude: 0 – 12,000 feet (3,657 m); automatic altitude correction for IAB pressure
