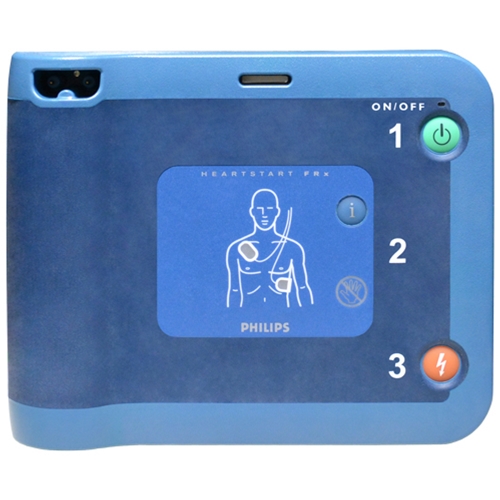

Philips Heartstart FRx Features
The Philips FRx Defibrillator features technological advancements to help in treating the most common cause of SCA. It’s designed to be easy to set up and use, as well as rugged and reliable for those who get there first. On the scene with law enforcement, on the field with student athletes or on the job with employees, the FRx Defibrillator is the solution for treating SCA in environments and conditions too demanding for other defibrillators
- Preconnected SMART Pads II can be used for both adults and children.
- The device reduces the shock energy to a level more appropriate for an infant or a child.
- Intuitive, clean design and clear voice instructions, including CPR coaching.
- Wireless Data Transfer Infrared data port for easy transmission to a Smartphone or PC running Event Review software, without cables or hardwire compatibility issues.
- The Philips SMART Biphasic waveform is highly effective, yet minimizes harmful side effects.
Philips Heartstart FRx Specifications
Dimensions
- Size: 2.4˝ x 7.1˝ x 8.9˝ (6 cm x 18 cm x 22 cm) D x H x W
- Weight: With battery and pads case: 3.5 lbs. (1.5 kg)
Environmental / Physical Requirements
- Sealing: Waterjet proof IPX5 per IEC60529 Dust protected IP5X per IEC60529
- Temperature: Operating/Standby: 32º – 122º F (0º- 50º C)
- Altitude: 0 to 15,000 feet
- Aircraft: Device: RTCA/DO-160D;1997
- Crush: 500 pounds
- Vibration: Operating: meets MILSTD 810F Fig.514.5C-17, random; Standby: meets MILSTD 810F Fig.514.5C-18, swept sine
- EMI (radiated/immunity) CISPR II Group I Class B, IEC 61000-4-3, and IEC 61000-4-8
User Interface
- Instructions: Detailed voice prompts and visual icons guide responder through use of the defibrillator
- CPR Coaching: Voice coaching for adult and infant/child CPR provides instructions and audio cues for the appropriate number, rate, and depth of chest compressions, as well as for each breath
- Controls: Green On/Off button, blue i-button, orange Shock button, optional Infant/Child key
- Indicators: Ready light, blue i-button, caution light, illuminated pads, icons, Shock button lights up when the shock is advised
Date Recording and Transmission
- Infrared: Wireless transmission of event data to a Smartphone or PC, using the IrDA protocol
- HeartStart Event Review Data management software (optional) for download and review of Software: data retrieved through the defibrillator’s infrared data port
- Data stored: First 15 minutes of ECG and the entire incident’s events and analysis decisions
