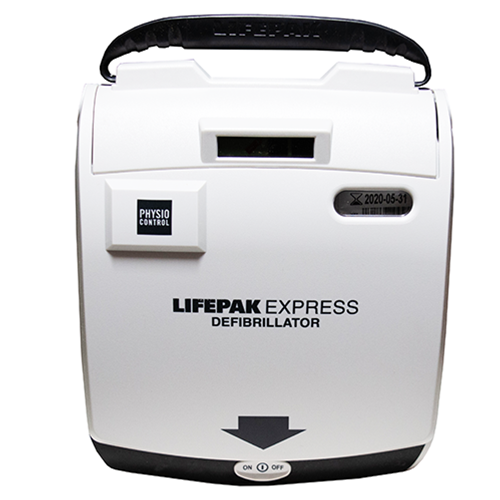

Physio-Control Lifepak Express Features
The LIFEPAK EXPRESS® AED from Physio-Control is designed to be used by the first person to respond to a sudden cardiac arrest (SCA) victim – easily, safely, and effectively.
Although not everyone can be saved from sudden cardiac arrest, studies show that early defibrillation can dramatically improve survival rates. And because some people are more difficult to defibrillate than others – and may need more than 200J – the LIFEPAK EXPRESS AED has the capability to escalate energy up to an industry-leading 360J.
- The LIFEPAK EXPRESS defibrillator is a critical resource that is easy to use
- The LIFEPAK EXPRESS defibrillator provides the most potent defibrillation energy available
- LIFEPAK® devices from Physio-Control are the choice of professionals
- The LIFEPAK EXPRESS defibrillator is reliable and easy to own.
Physio-Control Lifepak Express Specifications
Dimensions
- Height: 10.7 cm (4.2 in)
- Width: 20.3 cm (8.0 in)
- Depth: 24.1 cm (9.5 in), excluding handle
- Weight: 2.0 kg (4.5 lb) with CHARGE-PAK battery charger and electrodes
Defibrillator
- Waveform: Biphasic truncated exponential, with voltage and current duration compensation for patient impedance
- Output Energy Sequence: Multiple levels, configurable from 150 joules to 360 joules. Factory default settings of 200J, 300J, 360J
- Output Energy Accuracy: ±10% into 50 ohms, ±15% into 25 to 100 ohms
- Shock Advisory System™: An ECG analysis system that advises whether a shock is appropriate; meets rhythm recognition criteria specified in DF39
- The device charges for shock only when the Shock Advisory System advises defibrillation
- Device Capacity: Twenty (20) full discharges or 140 minutes of “on time” with a fully charged device
- Shock Charge Time: Charge times with a fully charged device: 200 joules in less than 9 seconds, 360 joules in less than 15 seconds
- System Recharge Times: Recharge times with a fully discharged device: able to deliver 6 shocks or provide 42 minutes of operating time after 24 hours of recharge time and 20 shocks or 140 minutes of operating time after 72 hours of recharge time with a new CHARGE-PAK battery charger at temperatures above 15°C (59°F)
- Controls: Lid Release/ON-OFF – Controls device power. Shock button delivers defibrillation energy
- Electrical Protection: Input protected against high voltage defibrillator pulses per IEC60601-1/EN60601-1
- Safety Classification: Internally powered equipment. IEC60601-1/EN60601-1
Environmental
- Note: All performance specifications defined assume the unit has been stored (two hours minimum) at operating temperature prior to operation
- Operating Temperature: 0° to +50°C (+32° to +122°F)
- Storage Temperature: -40° to +70°C (-40° to +158°F) with CHARGE-PAK battery charger and electrodes, the maximum exposure time limited to one week
- Atmospheric Pressure: 760 mmHg to 429 mmHg, 0 to 15,000 feet above sea level
- Relative Humidity: 5 to 95% (non-condensing)
- Water Resistance: IEC60529/EN60529 IPX4 “Splash-proof” with electrodes connected, CHARGE-PAK battery charger installed
- Shock: MIL-STD-810E, Method 516.4, Procedure 1, (40g, 6-9 ms pulse, 1/2 sine each axis)
- Vibration: MIL-STD-810E, Method 514.4, Helicopter – category 6 (3.75 Grms) and Ground Mobile – category 8 (2.85 Grms)
User Interface
- User Interface: The user interface includes voice prompts, audible tones and graphics prompts
- Readiness Display: The readiness display shows the device status
- OK Indicator: Shows “OK” when the last self-test was completed successfully. When the “OK” indicator is visible, all other indicators are not visible. The “OK” indicator is not displayed during device operation
- CHARGE-PAK Indicator: When displayed, replace the CHARGE-PAK™ battery charger
- Attention Indicator: When first displayed, at least six (6) discharges or 42 minutes of operating time remain
- Service Indicator: Service required when displayed
Default Settings
- Energy Sequence: Energy sequence is set to 200J, 300J, 360J
- Motion Detection: The motion detection system is set to on during analysis
- Energy Protocol: The energy protocol is set to increase energy only after a lower energy shock was unsuccessful
- Stack Shocks: Stack shocks option is set to off
- Turn-On Prompt: The turn-on prompt is set to provide voice prompts upon power on
- CPR Time: The CPR Time is set to 120 seconds
- Voice Prompt Volume: The voice prompt volume is set to high
Data Storage
- Memory Type: Internal digital memory
- ECG Storage: Dual patient data storage. Minimum 20 minutes of ECG stored for the current patient, summarized data stored for the previous patient
- Report Types:
- Continuous ECG – A continuous patient ECG report
- Continuous Summary report – A summary of critical resuscitation events and ECG waveform segments associated with these events
- Event Log report – A report of time-stamped markers, which reflect operator and device activity
- Test Log report – A device self-test activity report
- Capacity: Minimum 200 time-stamped event log markers
- Communications: Wireless transfer to a personal computer
- Data Review: Physio-Control provides an array of tools to meet customer needs for data viewing and analysis
