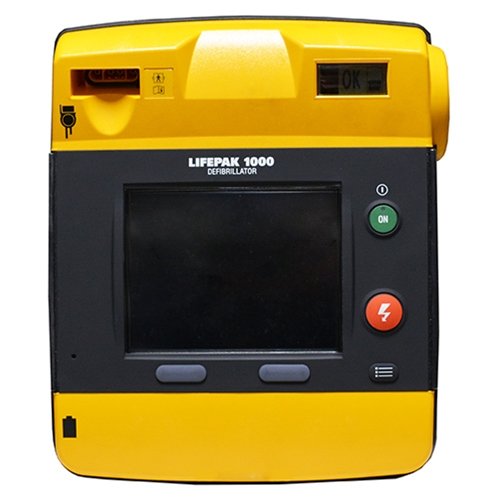

Physio Control Lifepak 1000

Desfibrilador Automático Externo (DEA)

Desfibriladores Physio Control - Soma Technology, Inc.

Descripción

Stryker Physio-Control Lifepak 1000 Features

The Stryker Physio-Contol Lifepak 1000 is an automated external defibrillator. The Lifepak 1000 features a large display that can show graphics and ECG readings. The display, along with audio prompts, can guide you through the operation of the defibrillator. The defibrillation system comes with CPRMax, which can minimize the interruption during CPR while the AED is charging. The Lifepak AED can provide up to 360 Joules of energy, producing 220 shocks within 17 hours of monitoring time.

  • Cpr MAX Technology for no interruption, allowing compressions to continue while the AED charges
  • Adaptive biphasic technology to provide a range of energy from 150 to 360 joules
  • 3-lead ECG functionality when needed
  • Large, LCD screen, proving information and monitoring
  • Adjustable setting to match your CPR and resuscitation protocols
  • Loud voice prompts and on-screen guidance
  • Can convert from AED to Manual Mode with a touch of a button

Physio-Control Lifepak 1000 Specifications

Display

  • Size (Active viewing area)
  • 120 mm (4.7 in.) x 89 mm (3.5 in)
  • Display Type 320 dot x 240 dot LCD with backlight
  • Frequency Response 0.55 Hz to 21 Hz (-3 dB), nominal
  • Waveform Sweep Speed: 25 mm/sec for ECG, nominal
  • Waveform viewing time: Minimum 4 seconds
  • Waveform Amplitude 1 cm/mV, nominal
  • Display Range Differential: ±1.4 mV full scale, nominal
  • Heart Rate 20 to 300 BPM digital display
  • Display «—» if the heart rate is less than 20 BPM
  • Heart symbol flashes for each QRS detection
  • Displayed ECG ECG information is received from therapy pads in anterior-lateral or anterior-posterior positions, or from the 3-wire ECG cable in Lead II

ECG Mode

  • ECG Display Provides nondiagnostic ECG display of the patient’s heart rhythm.

Manual Mode

  • Energy Sequence Delivers energy at levels selected in Setup mode
  • Charge Time Charge time:
    • 200 joules in less than 7 sec (typical)
    • 360 joules in less than 12 sec (typical)

AED Mode

  • Shock Advisory System (SAS): ECG Analysis system that advises whether a shock is appropriate, meets rhythm recognition criteria specified in DF80 and IEC 60601-2-4. In AED mode, the device allows a shock only if SAS advises defibrillation. Shock Ready Time Time to first shock (electrodes connected to a patient at power on an initial rhythm finding is Shock Advised):
    • Less than 25 sec to 200 joules
    • Less than 30 sec to 360 joules
  • Energy Sequence: Multiple levels, configurable from 150 to 360 joules
  • Shock-to-Shock cycle time (200J to 300J):
    • Less than 25 seconds
  • Time for a 3-shock sequence (200J/300J/360J):
  • Less than 70 seconds

With Infant/Child Pads

  • The following specifications apply from 25 to 175 ohms
  • Energy Accuracy (into 50 ohms):
    • Selected energy ÷ 4 +/- 15%; 86 joules +/- 15% maximum

With Adult Pads

  • Patient Impedance Range: 10 – 300 ohms
  • The following specifications apply from 25 to 175 ohms.

Energy Accuracy

  • 10% of the energy set into 50 ohms
  • 15% of the rated energy output into 25 – 175 ohms

Waveform

  • Biphasic Truncated Exponential with voltage and duration compensation for patient impedance.

Marca

Physio Control
