Ziehm Vision²

Ziehm Vision² Features

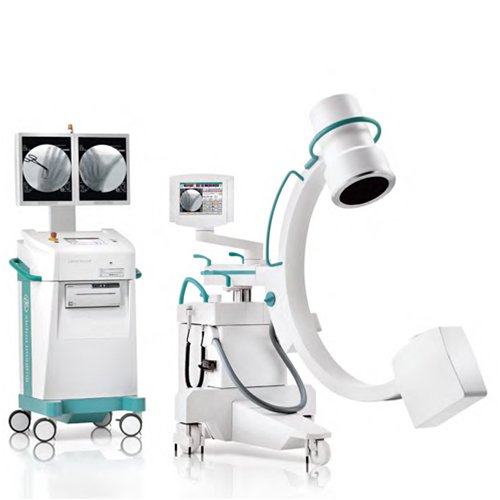

Ziehm Vision² delivers high-quality imaging with low dose exposure on a footprint of just 0.8 m². It features a compact C-arm and monitor cart with an intuitive touchscreen user interface as well as two 19” flatscreen monitors. It has a high-resolution CCD camera that detects over 4,000 shades of gray. The monoblock generator’s unique liquid cooling system (Advanced Active Cooling) is specially designed for extended use in operating theaters, making the Ziehm Vision² ideal for a wide range of clinical applications such as general surgery, orthopedics, and traumatology.

• 18” TFT monitors provide bright, high contrast image with a wide viewing angle.
• Intuitive workflow with synchronized TFT touchscreens on c-arm and monitor cart.
• High-resolution thanks to a dynamic CCD camera with 1 k × 1 k technology.
• Easy integration into existing networks (with WLAN option).
• Active Cooling for continuous performance during lengthy, demanding procedures.
• Counter-balanced c-arm for simplified positioning.

Ziehm Vision² Specifications

C-Arm Mobile Stand

Dimensions and Mechanics

• Motor-driven vertical travel: 17” [43 cm]
• Motor-driven horizontal travel: 9” [22 cm]
• Motor-driven orbital rotation: -90° / +45°
• Angulation: ± 225°
• Swiveling (panning): ± 10°
• Focus-image receptor distance: 40” [111 cm]
• C-arm vertical free space: 35” [89.5 cm]
• C-arm depth: 27” [68 cm]
• Width: 32″ [80 cm]
• Length: 63-72” [160-182 cm]
• Height: 62-79” [157.5-200.5 cm]
• Brakes: Patented steering & braking lever, with parallel movement of the mobile stand in all directions

X-Ray Generator

• X-ray tube: a stationary anode
• Single focus: 0.6 (IEC 336)
• Max. anode heat content: 45 kHU / 34 kJ
• Max. anode heat dissipation: 600 W
• Generator type:
  • monoblock
  • 20 kHz high frequency
  • microprocessor-controlled
• Operating Values:
  • Nominal output (100 kV): 2,000 W
  • Maximum output: 2,200 W
  • Pulsed fluoroscopy:
    • kV range: 40-110 kV
    • mA range: 0.2-20 mA
    • pulse width: 10-24 ms
    • pulse rate: 1, 2, 4, 8, 12.5, 25 pulses/s
  • Digital radiography (snapshot):
    • kV range: 40 -110 kV
    • mA: up to 20 mA
  • Filtering:
    • Total filtering: ≥ 4 mm Al equivalent
• Output
  • Pulsed fluoroscopy: up to 20 mA
  • Digital radiography: up to 20 mA
  • Tube housing heat capacity:
    • powered by integrated Advanced Active Cooling and heat management system
    • 5 million HU system heat capacity
    • 400 W continuous heat dissipation in clinical performance
• Collimator System
  • Dedicated pre-collimator for FPD
  • Collimator rotation: ± 90°
  • Iris collimator: 2-8” [50-198 mm] diameter
  • Slot collimator: 2-8” [50-198 mm] diameter
  • Virtual collimation without radiation

Flat-Panel Detector System (only on FD Model)

• Type: amorphous silicon photodiode TFT technology
• Scintillator: cesium iodide
• Field size: 8 x 8” [19.8 x19.8 cm]
• Detector matrix: 1024 x 1024 pixels; 194 μm pixel size
• Dynamic range: 72 dB
• System resolution: 2.4 lp/mm
• Anti-scatter grid: 70 lines/cm; grid ratio 8:1
• Laser positioning device integrated with the detector housing

User Interface

• TFT touchscreens on C-arm stand and monitor cart: synchronized; intuitive icons for easy use; resolution: 640 x 480 pixels; the multi-lingual user interface

Monitor Cart

Monitors

• High-resolution and high-brightness twin flat-screen monitors: screen size: 18.1“ (46 cm); native resolution: 1280 x 1024 pixels; viewing angle (horizontal & vertical): 170°; contrast ratio: 600:1; Dimensions: 16 x 13 x 3” [41 x 34 x 7 cm]

3D Workstation (for Ziehm Vision² FD Vario 3D Only)

• Hardware:
  • Intel Core 2
  • 2048 MB DDRAM
  • USB, CD / DVD (option)
  • Mouse
• Software:
  • Control software for variable isocentric movement
  • 3D Visualization
  • Slice planes: axial, sagittal, coronal
  • 3D reconstruction algorithm FBP
  • 3D volume size: 5 x 5 x 5” [128 x 128 x 128 mm]
  • Resolution: 2563 voxel, 5123 voxel
  • Thick slice filter function
  • Iso loop
  • Measurement function: length, angle
  • Zoom function
  • Parallel slices function

Digital Image Processing

• Real-Time Processing Functions:
  • Recursive filter: 4 levels (out of 16)
  • Stack filter (‘Last Image Hold’): 5 levels
  • Edge enhancement filter: 5 levels
  • Windowing and step windowing
  • Digital image rotation and reversal without radiation
  • Grayscale inversion
  • Digital shutters
• Application-Oriented Anatomical Programs:
  • Bone, Heart, Abdomen
  • Soft, Large Patient
• Object Detected Dose Control (ODDC):
  • Automatic motion detection/li>
  • Automatic metal correction
• Image Acquisition:
  • Autosave
  • Cine loop with auto-playback (option): sequential image storage and display: 1, 2, 4, 8, 12.5, 25 frames/s; start, stop and replay rate controls
• DSA Package (Option):
  • DSA real-time subtraction with a re-masking capability
  • MSA maximum opacification sequence
  • RSA roadmapping
  • Pixel shift / landmarking
  • Digital measurement functions (distance/angle)
• Postprocessing Functions:
  • Edge enhancement: 5 levels
  • Zoom: 3 levels
  • Image rotation
  • Windowing
  • Grayscale inversion
  • Image cropping (digital shutters)
• Digital Memory:
  • Storage capacity: up to 55,000 images; 400 scans ( 2563 voxel volume); 200 scans ( 5123 voxel volume)
  • Memory matrix: 1024 x 1024 pixels
  • Image matrix: 1024 x 1024 pixels
  • Digital image processing: up to 32 bit; 14 bit A/D converter
  • Grayscale: 1024 shades of gray (10 bit)
• Data Organization:
  • Patient-based data management with 16-image mosaic display
  • Pre-registration via DICOM Worklist
  • Manual input or emergency registration
  • Air Kerma Dose Display
  • Air Kerma value tagged to the stored image
