GE Healthcare Venue R1 Features

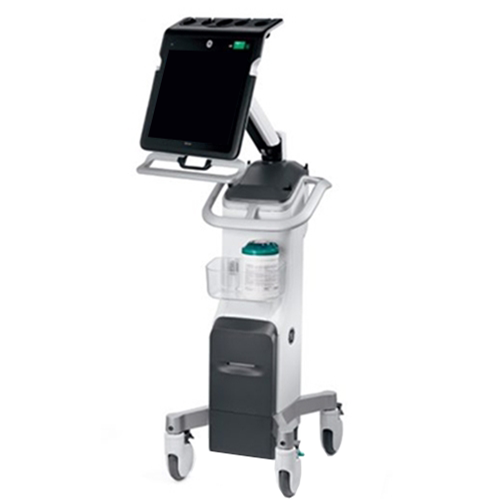

The GE Venue R1 is an ultrasound system designed for Point-of-care use. The Architecture of the Venue R1 Ultrasound system provides a variety of imaging and scanning modes with a full spectrum of operating frequencies. The GE Ultrasound provides imaging modes such as; 2D, Color Doppler, M-Mode, Color M-Mode, and PW. The design of the GE Venue is based on taking an ultrasound system and combining it with advanced clinical tools to produce a system that could quickly assess a situation. With the GE system’s Shock Toolkit, Ultrasound can easily diagnose heart, lung, and vascular conditions. The 19-inch LCD flat touchscreen monitor provides high-definition images that can be seen from a distance or even at an angle. The flat-screen display is also seamlessly one piece of glass, making cleaning a breeze. There are also no buttons, which let you go right to work. The system also features up to four hours of battery life and storage for up to four probes. The R1 cart also comes with cardiac-specific tools, like TEE and ECG. The GE Venue R1’s small footprint and intuitive interface are a perfect addition for quick and accurate diagnosis in any Emergency or ICU.
- Seamless display for easy cleaning.
- Simple and intuitive to use so you can focus on the patient
- ECG and TEE functionalities
- Suspension with large wheels and small footprint designed for robust use in emergency rooms.
- A handy key probe allows the clinician to control the system with freely programmable buttons on the probe handle.
- Investigations that actually require three hands can be done with two hands.
- Up to 4 hours of battery power and a clearly visible remaining time display that changes color as the battery level gets lower.
- Large 19-inch LCD multi-touch monitor with height-adjustable swivel arm.
- Four probe connections for a variety of examination possibilities.
- Intelligent cable management. Well-placed brackets help keep cables out of the ground.
- Network technology with state-of-the-art security standards. Whether wired or optional via WLAN
Venue R1 Specifications
Dimensions
- Height: 51.57 in (131 cm)
- Width: 18.89 in (48 cm)
- Depth: 28.54 in (72.5 cm)
- Weight: 139 lbs (63kg)
Electrical
- Voltage: 100-200 VAC
- Power Consumption: 500 VA
- Frequency: 50-60 Hz
