GE vivid IQ 4D Features

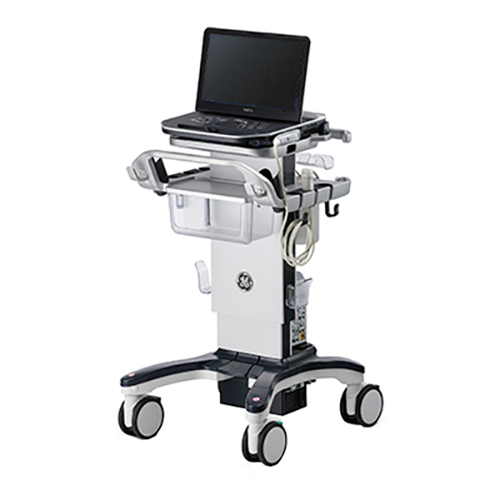

The GE Vivid IQ 4d is a Portable laptop-style ultrasound system. The Vivid IQ 4D is a system that can support various applications including; transesophageal, peripheral vascular, fetal/OB, abdominal adult, pediatric, small organ, cephalic and musculoskeletal. The Vivid IQ was initially designed specifically for Cardiac Ultrasound. Other applications The compact lightweight ultrasound system comes with a 15.6-inch touch screen monitor and can connect up to four different transducers at one time. The Vivid IQ Ultrasound comes standard with cardiac imaging tools such as Tissue Velocity, Tissue Tracking, Tissue Synchronization, Strain Rate, AutoFF, AFI, and Raw Data. The Ultrasound system runs on battery power ad can provide four continuous hours of imaging between charges. The GE VIVId IQ provides superior quality diagnostic imaging.
- Portable – 10% lighter, 10% thinner than Vivid q
- Reliable – Rugged, cleanable design built for tough conditions
- Easy to use – Intuitive touchscreen and fewer keystrokes
- Convenient – New cart for better management of accessories
- Advanced – 4D TEE, ICE 3, and other powerful capabilities
GE Vivid IQ 4D Specifications
Dimensions
- Height: 64 mm (2.5”)
- Width: 390 mm, (15.35”)
- Depth: 362 mm (14.25”)
- Weight with battery: 5.2 kg (11.5 lbs)
Electrical Power
- Voltage: 100-240 VAC
- Frequency: 50/60 Hz
- Power: max. 130 VA
- Operating System – Windows® 7
Cart Dimensions
- Height: 835 – 1115 mm (32.9” – 43.9”)
- Width: 524.9 mm (20.7”)
- Depth: 552.3 mm (21.7”)
- Weight: 41 kg (90 Ibs.)
Cart Design
- Three USB ports
- Six probe holders
- Four probe cable hooks
- Charge box (optional ) – to charge up to three batteries and to scan more than 180 min with four fully charged batteries
- Multi-probe box (optional ) – the three Rs, one DLP to support 6VT-D
Display Monitor
- 15.6” widescreen full High-Definition (HD) flicker-free LCD display with full touch ability
- Ergonomic FlexFit design with adjustable typing angle and flexible view angle
- Resolution: 1920 x 1080 pixels, full HD
- Fold-down and lock mechanism for transportation
- The screen can be adjusted in different angles for scanning mode, typing mode, and closing, allowing to optimize the viewing angle in each position
- Backlight adjustable
Automated Function Imaging
- Using speckle tracking technology assesses and quantifies ventricle longitudinal wall contraction ( both segmental and global). Presents the complete left ventricle with all segments in one quick, comprehensive bull’s- eye view. (optional on the VIVId IQ4D and the Vivid IQ Premium only)
