GE Vivid IQ Features

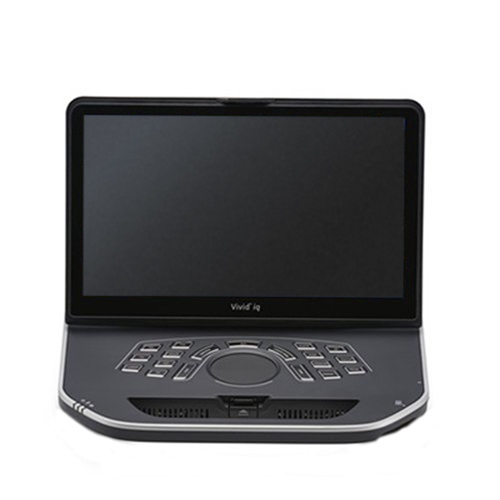

The GE Vivid IQ is a portable laptop-style ultrasound for cardiovascular ultrasounds. The Vivid IQ comes with a fully integrated 15.6-inch touch screen monitor, eliminating the need for a full keyboard, and making the whole system much lighter. The GE Vivid supports applications such as; cardia, transesophageal, peripheral vascular, fetal/OB, abdominal adult, pediatric, small organ, cephalic and musculoskeletal. The system offers eight different connection ports for a variety of transducers and probes. The Vivid IQ offers additional Cardiac imaging functionality including Tissue Velocity, Tissue Tracking, Tissue Synchronization, Strain Rate, AutoFF, AFI, and Raw Data. The ultrasound system produces high-quality imaging with fast speed. There is no lag time in-between saving images and moving from one function to another on the system.
- Portable – 10% lighter, 10% thinner than Vivid q
- Reliable – Rugged, cleanable design built for tough conditions
- Easy to use – Intuitive touchscreen and fewer keystrokes
- Convenient – New cart for better management of accessories
- Advanced – 4D TEE, ICE 3, and other powerful capabilities
GE Vivid IQ Specifications
Dimensions
- Height: 64 mm (2.5”)
- Width: 390 mm (15.35”)
- Depth: 362 mm (14.25”)
- Weight with battery: 5.2 kg (11.5 lbs)
Electrical Power
- Voltage: 100-240 VAC
- Frequency: 50/60 Hz
- Power: max. 130 VA
- Operating System – Windows 7
Cart Dimensions
- Height: 835 – 1115 mm (32.9” – 43.9”)
- Width: 524.9 mm (20.7”)
- Depth: 552.3 mm (21.7”)
- Weight: 41 kg (90 Ibs.)
Cart Design
- Three USB ports
- Six probe holders
- Four probe cable hooks
- Charge box (optional ) – to charge up to three batteries and to scan more than 180 min with four fully charged batteries
- Multi-probe box (optional ) – three RS, one DLP to support 6VT-D
Display Monitor
- 15.6” widescreen full High-Definition (HD) flicker-free LCD display with full touch ability
- Ergonomic FlexFit design with adjustable typing angle and flexible view angle
- Resolution: 1920 x 1080 pixels, full HD
- Fold-down and lock mechanism for transportation
- The screen can be adjusted in different angles for scanning mode, typing mode, and closing, allowing to optimize the viewing angle in each position
- Backlight adjustable
