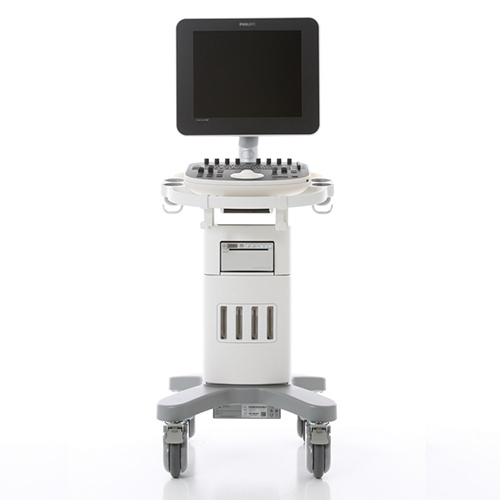

Philips ClearVue 550 Ultrasound Features
The Philips ClearVue 550 is a compact Ultrasound known for its dependability. The ClearVue 550 s The Midrange Ultrasound in the ClearVue series. With features like SonoCT and XRES technologies to enhance the quality of the Ultrasonic images. The System can cross multiple ultrasonic applications from; abdominal, small parts, pediatrics, musculoskeletal, urology, Obstetrics, Gynecology, vascular, and cardiac. The Philips Ultrasound can provide 2D, 3D, and 4D imaging options. Additional features include Blood flow and stress imaging. The Philips ClearVue is an energy-efficient ultrasound with low power consumption. The ClearVue ultrasound system has a 19-inch high-resolution monitor on an articulating arm and four transducer/ probe ports.
- Tilt-and-Swivel 19” High-Resolution LCD
- SonoCT Compound Imaging
- Panoramic
- 4 transducer ports
- Simplified Interface
- Lightweight transducers
- Tissue Harmonics
- 2D, M-Mode, Anatomical M-Mode
- Trapezoidal Imaging
- PW/Color/Power Angio Doppler
- HPRF PW Doppler
- 3 USB Ports
- internal Hard Drive
- CW Doppler Option
- Duplex, Triplex
- HD Zoom
- XRES eXtreme Resolution speckle reduction imaging
- Cine loop review of ultrasound images
- Integrated multi-session CD/DVD Drive
- DICOM
- Ethernet port
Philips ClearVue 550 Ultrasound Specifications
Dimensions
- Height: (adjustable, maximum) 1160 mm (45.7 in)
- Width: 520 mm (20.5 in)
- Depth: 584 mm (23.0 in)
- Control panel height: (non-adjustable) 837 mm (33.0 in)
- Weight: (with printer) 52 kg (115 lbs.), approx. 200 lbs. with packaging
General Specifications
- All-digital broadband beamformer
- 65,536 digitally-processed channels
- Depth to 30 cm (exam and transducer specific)
- Up to 272 dB Dynamic Range
Power
- Voltage: 100 to 240 VAC
- Frequency: 50 to 60 Hz
- Power: 450VA
- Power consumed: 300VA
- Heat dissipation: <700 BTUs/hour (fully loaded)
System Overview
- Monitor (inch): 17” LCD
- Tilt/Rotate Adjustable Monitor: Yes
- Monitor Resolution: 1280*1024
- Touch Screen (Inch): No
- Trackball or Trackpad: Trackball
- CP Back-Lighting: Yes
- Weight: 115 lbs (52kg)
- Probe Ports: 4
- Battery: No
- Sleep Mode (Quick Start): No
- Maximum Depth of Field: 30cm
- Minimum Depth of Field
- Cart (HCU): No
- Independent Steer & Lockable Wheels: Yes
Imaging Modes
- 2D, M mode: Yes
- M-color Flow Mode: Yes
- Anatomical M-mode: Yes
- Trapezoidal Mode: Yes
- Color, Power Angio, Pulse Wave Doppler: Yes
- Bi-directional Power (=HD FLOW): Yes
- SCW Doppler: Yes
- Tissue Doppler(Velocity) Imaging: Yes
- Freehand 3D: Yes
- Live 3/4D OB/GYN: Yes
- HD Live: No
- STIC (Spatio-Temporal Image Correlation): Yes
- Live 3D Echo: No
- Stress Echo: No
- Strain and Strain Rate (Cardiac): No
- B Flow: Yes
- Panoramic Imaging (=Logiq view): Yes
- Contrast Imaging – Cardiac: No
- Contrast Imaging – General Imaging: No
- Strain-based Elastography: Yes
- Shear Wave Elastography No
Connectivity
- DICOM 3.0: Yes
- DICOM SR_Cardiac: Yes
- DICOM SR_Vascular: Yes
- DICOM SR_OB/GYN: Yes
- JPEG, WMV, & AVI: Yes
- USB: Yes(3)
- HDD/SDD: 500GB
- DVD/CD RW: Yes
- Wireless LAN: Nos
