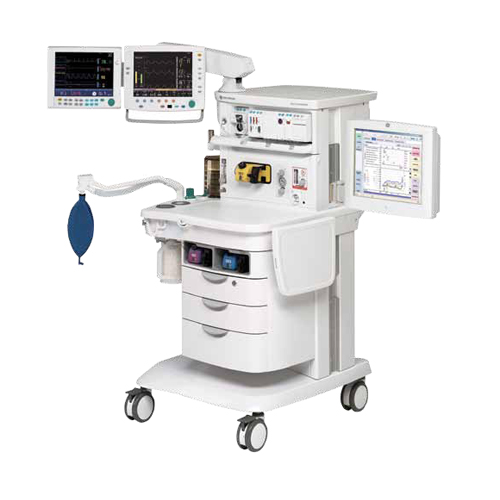

GE Datex Ohmeda Aisys Features
The Aisys Carestation for anesthesia is a scalable, flexible, and functionally integrated system, featuring advanced design ventilation, respiratory monitoring, and breathing system. The Aisys Carestation simplifies complex processes with its innovative design. The large-panel displays are mounted on a movable arm with 360° of rotation. You can easily reposition the displays to keep vital signs and ventilation controls in view and in reach at all times.
Exceptional Design
- Flexible and integrated, with the most advanced design, ventilation, vital signs monitoring and Advanced Breathing System (ABS™)
- Exclusive INview™ Patient Displays so that you can position the patient and ventilation data and controls where you need them
- Can be integrated with your hospital information system
- Fully upgradeable to add new technologies as your needs change
Proven Clinical Excellence
- Superior ventilation for neonates to adults
- VCV (Volume Control) Cardiac Bypass, Volume Control, Pressure Control, PSVProR (Pressure Support with Apnea backup), Synchronized Intermittent Mandatory Ventilation (SIMV) – Volume and Pressure, electronic PEEP, PCVVG (Pressure Controlled Ventilation – Volume Guaranteed) (Optional)
- Tidal volume compensation
- Vital signs monitoring with our exclusive technology (Optional)
- Patient Spirometry™ measures airway pressures, flow, volumes, compliance and airway resistance, breath by breath at the patient’s airway.
- Entropy aids you in monitoring the state of the central nervous system
- Neuromuscular transmission (NMT) provides a continuous, quantitative measurement of the patient’s responses to nerve stimulation and regional block
- Advanced Breathing System (ABS)
- Fewer connections reduce the risk of misconnects and leaks, enhancing patient safety
- Low circuit volume contributes to a fast response— ideal for low flow cases
- Rising, microprocessor-controlled bellows provides immediate visual feedback about the patient’s status
GE Datex Ohmeda Aisys Specifications
Dimensions
Unit
- Height: 52.7″ (133.9 cm)
- Height (with horizontal arm): 59.2″ (150.2 cm)
- Width: 28.92″ (73.45 cm)
- Depth: 34.80″ (88.40 cm)
- Weight (Approx): 370 lb (168 kg)
Top Shelf
- Weight limit: 100 lb (46 kg)
- Width: 21.66″ (55.01 cm)
- Depth: 20.31″ (51.6 cm)
Top Shelf (Optional)
- Weight limit: 50 lb (23 kg)
- Width: 21.57″ (54.8 cm)
- Depth: 17.50″ (44.45 cm)
Work Surface
- Height: 34.71″ (88.17 cm)
- Size: 2365.5″ (2358.1 cm)
Folding Side Shelf (Optional)
- Weight limit: 50 lb (23 kg)
- Height: 34.7″ (88.17 cm)
- Width: 11.39″ (28.93 cm)
- Depth: 14.29″ (36.29 cm)
DIN Rail (Optional)
- The side of Machine: 15.1″ (38.3 cm)
Drawers (Internal Dimensions)
Small
- Height: 4.13″ (10.5 cm)
- Width: 14.88″ (37.80 cm)
- Depth: 14.82″ (37.64 cm)
Large
- Height: 5.91″ (15.0 cm)
- Width: 14.88″ (37.80 cm)
- Depth: 14.82″ (37.64 cm)
Absorber Bag Arm (Optional)
- Arm length: 12″ (30.5 cm)
- Bag arm height (adjustable): 34.3″ (87 cm) 40.9″ (104 cm)
Casters
- Diameter: 5″ (12.5 cm)
- Brakes: Individual locking front casters
Pendant mounting interface (optional)
- Height from floor: 30.28″ (769 mm)
- Suspended mass limit: 800 lb (364 kg)
Anesthetic Agent Delivery
- Vaporizer: Aladin2 Cassette
- Number of active positions: 1
Cassette Handling
- No restriction for tilting during storage or handling
Agent Capacity
- Total: 220 mL
- When cassette indicator shows empty: 140 mL (80 mL residual volume)
Accuracy (Applies to both Aladin and Aladin2)
- All agents in typical operating conditions
- Fresh gas flow range 1.0 to 10 L/min
- Ambient temperature 64.4° to 77°F (18° to 25°C)
Isoflurane, Sevoflurane
- ±0.2% v/v of full scale or ±10% of setting (whichever is greater)
Desflurane
- ±0.5% v/v of full scale or ±10% of setting (whichever is greater)
In Other Operating Conditions
- Fresh gas flow range 0.2 to 15 L/min
- Ambient temperature 50° to 95°F (10° to 35°C)
Isoflurane, Sevoflurane
- ±0.4% v/v of full scale or ±20% of setting (whichever is greater)
Desflurane
- ±1.0% v/v of full scale or ±20% of setting (whichever is greater)
Agent setting ranges (Applies to both Aladin and Aladin2)
Isoflurane
- OFF, 0.2 to 5% in fresh gas flow, resolution 0.1%
Sevoflurane
- OFF, 0.2 to 8% in fresh gas flow, resolution 0.1%
Desflurane
- OFF, 1.0 to 18% in fresh gas flow, resolution 0.2%
