GE Datex Ohmeda S/5 Anesthesia Monitor

Solicite una cotización
Cotizaciones en menos de 24 horas

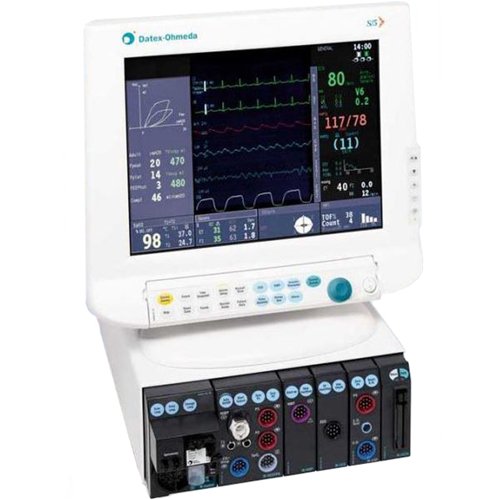

GE Datex Ohmeda S/5 Anesthesia Monitor

The Datex-Ohmeda S/5 monitor gives you the time and freedom to effectively monitor your patient. It offers everything you need for effortless patient monitoring in the operating room and beyond: a full range of monitoring parameters, intuitive operation, a workstation that can be configured in various ways, seamless device integration, and data transfer.

  • Central unit and displays are separate components
  • 4 display options with integrated monitor controls: 15″ or 17″ high-resolution color video display on a 10.4″ or 15″ flat panel color LCD screen
  • User-configurable screen design and colors
  • Supports up to 8 waveforms on the screen
  • Support for a second and third user display configurable with different waveforms and numerical information
  • Anesthesia-dedicated alarm system
  • Alarm display and adjustment page
  • 10-minute mini graphical trends referenced to set alarm limits
  • Automatic alarm limit functions
  • 6 user-configurable modes and special cardiac lead mode
  • 24-hour numerical and graphical trends
  • Split screen capability to permanently display ST, Spirometry Loop, EEG, EP or MiniTrends
  • 4 user-configurable graphical and numerical trends

General Information

  • ECG, NIBP, SpO2, Temp, 2-IBP, Rec, CO2 and 5 Agent. color screen

Dimensions

  • Height: 13.4 inches (340 mm)
  • Width: 13.2 inches (335 mm)
  • Depth: 8.1 inches (205 mm)
  • Weight (without modules): 24.2 lbs (11 kg)

Voltage

  • Nominal voltage and frequency range: 100 to 240v ± 10%, 50/60 Hz
  • Maximum energy consumption: 140 VA
  • Protection class: Class I
  • Grounding: Hospital grade

Monitor

  • Screen size: 12.1 diagonal
  • Screen type: TFT LCD active matrix color
  • Screen resolution: SVGA resolution, 800 x 600
  • Number of traces: up to 8
  • Screen design and colors: user-configurable. Integrated command card with direct function keys, menu keys, and ComWheel for menu selections and adjustments.

Battery

  • Type: Built-in NiMH battery (2 PCS)
  • Capacity: Up to 1.5 hours typical on a full charge at 23°C
  • Recharge: when connected to the electrical grid
  • Charging time: 10 hours at full capacity
  • Battery operation alarm
  • Indicator: Battery bar displayed on the screen

Tendencies

  • Graphic: all parameters, selectable times between 30 min to 72 h
  • Numerical: continuously measured parameters sampled every 5 minutes, NIBP and PCWP values ​​updated after each measurement. Additionally, the marker activates the numerical trend update.
  • Trend cursor: in graphical and numerical trends
