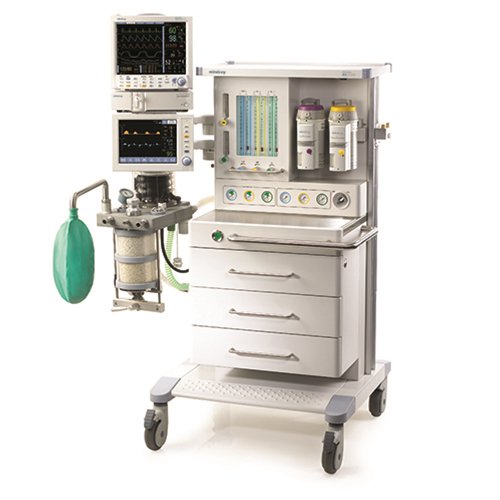

Mindray Datascope AS3000 Features
The Mindray Datascope AS3000 is a continuous flow anesthesia system that offers manual or automatic ventilation, easily adjustable fresh gas supply, anesthetic agent delivery, ventilation monitoring, convenient ergonomics, and state-of-the-art safety systems.
- Multiple ventilation modes including: Pressure Controlled Ventilation (PCV), Pressure Support Ventilation (PS), Synchronized Intermittent Mandatory Ventilation (SIMV), and Volume Controlled Ventilation (CMV).
- The heated breathing system (35°C) virtually eliminates internal condensation.
- Auxiliary O2/air flow meters provide a built-in method for regulating O2 concentration.
- Dedicated 10.4″ remote color display, adjustable for maximum visibility of fan information.
Dimensions
- Height: 54.3 in (138 cm)
- Width: 25.6 in. (65 cm)
- Depth: 27.2 in. (69 cm)
- Weight (without vaporizers or gas cylinders): 326 lbs (148 kg)
Drawers
- Number of Drawers: 3
Voltage
- Main power supply: 100 to 240 VAC, 50/60 Hz, 10 A
- Power input: 120 VAC – 10 A (2 A for AS3000, 8 A for auxiliary outputs)
- Power consumption: less than 200 VA (excluding auxiliary outlets)
- Main fuse: 2 x 10A
Battery
- Battery: 2 x 12V sealed lead-acid
- Battery runtime: 45 minutes minimum
- Battery charging time: 8 hours maximum
Fan
- Ventilation modes: CMV (Volume), PCV (Pressure Control), SIMV (Synchronized Volume), Pressure Support, Manual and Spontaneous
- Types of patients: adults and children
- Tidal volume:
- 40 – 1400 ml
- Child: 40 – 400 ml (± 17% or at least 20 ml)
- Adult: 300 – 1400 ml (± 15% or at least 50 ml)
- Pressure delivery range:
- 5 – 70 cmH2O manual and PCV modes
- 3 – 80 cmH2O PS and SIMV modes
Anesthetic gas removal system
- Flow range: 25 to 50 l/min
- Maximum constant flow before spillage occurs: 50 l/min
- Particle filter: replaceable
