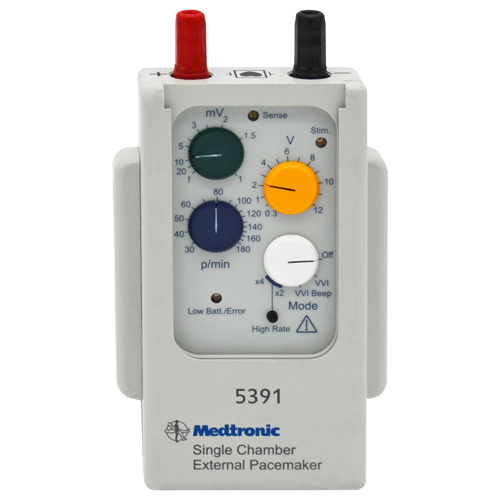

Medtronic 5391 Features
The Medtronic 5391 is a single-chamber temporary pacemaker that provides four different types of modes for pacing therapy. This Medtronic pacemaker is battery-powered and used for atrial or ventricular pacing. It has a basic pacing rate of 180 ppm. The device is ergonomically designed to allow easy set-up. A single 9V battery can run the device up to 38 days.
- Operates with a 9V alkaline battery.
- VVI, AAI, VOO, and AOO pacing therapy modes.
- Compatible with Medtronic 6416, Medtronic 53912, Medtronic 5433A, and Medtronic 5433V pacing leads, extension cables, and patient cables.
Medtronic 5391 Specifications
Dimensions
- Height: 4.5 in. (11.5 cm)
- Width: 2.3 in. (6 cm)
- Depth: 0.8 in. (2 cm)
- Weight (with battery): 6.5 oz (185 g)
Battery Life
- Alkaline: 38 days
- Lithium: 53 days
Modes
- Modes: VVI, VOO, AAI, AOO
Rates
- Pacing Rate: 30 – 180 ppm
- Atrial Overdrive Pacing (RAP): x2: 60 – 360 ppm; x4: 120 – 720 ppm
General
- Output Amplitude: 0.3 … 12 V ± 5%
- Pulse Width: 0.75 ms ± 0.02 ms
- Sensitivity: 1 – 20 mV, Async
- Refractory: 250 ms
