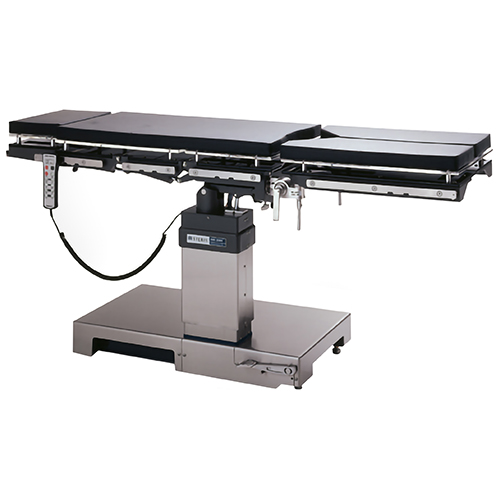

Steris ASC 2000

Steris ASC 2000 Features

The Steris ASC 2000 surgical table is battery powered and specifically designed to proved the complete patient positioning flexibility required for modern ambulatory surgical care facilities. The ASC 2000 features powered lateral tilt, trendelenburg / reverse trendelenburg, and adjustable height functions. It is designed to safely function with a 400 lb. patient and is constructed of aluminum alloy, stainless steel, and other high-quality materials.

• 400 lb maximum patient weight.
• Equipped with an auxiliary control system.
• Toggle switches on the front of the table base are used for table movements as long as electrical power is still available.
• Manually adjustable headrest and leg sections.
• 79” total table length.
• 22” total table width.

Steris ASC 2000 Specifications

Dimensions

• Height: 27.5 to 41 in (69.9 to 105.5 cm)
• Width: 22 in (20.32 cm)
• Length: 79 in (200.9 cm)
• Weight: 485 lbs (220 kg)
• Maximum Patient Weight: 400 lbs (181 kg)

Table Movements

• Height: 27.5” to 41” (69.9 to 104.5 cm)
• Trendelenburg Range: 45° ± 1°
• Reverse Trendelenburg Range: 20° ± 1°
• Lateral Tilt Range: 20° ± 1°
• Lower Back Motion: UP: 75° ± 1°; DOWN: 15° ± 1°
• Upper Back Motion: UP: 40° ± 1°; DOWN: 55° ± 1°
• Head Motion (Manual): UP: 33° ±1°; DOWN: 87° ±1°
• Leg Motion (Manual): UP: 0°; DOWN: 90° ±1°; (Swivel 90° toward outside)

Power

• Input: 100-132 VAC, One-Phase, 50/60 Hz, 5.0 A
• Input: 180-264 VAC, One-Phase, 50/60 Hz, 3.0 A

Environmental

• Temperature: 32 to 122°F (0 to 50°C)
• Relative Humidity: 20 to 80% RH
