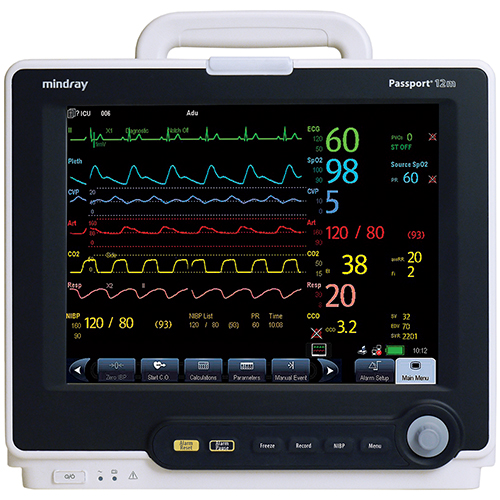

Mindray Passport 12m Features
The Mindray Passport 12m is a clinically advanced and highly configurable monitor. The Passport 12m offers a broad range of patient monitoring features well-suited for the mid to high acuity patient care and operating room environments. It has a 12.1” color touchscreen display with optimal visibility, and quick access menus. It also offers multiple trend capabilities.
- 12.1″ high-resolution touchscreen display.
- Familiar intuitive interface across Passport family.
- Customizable screen views and quick keys for diverse patient and clinical settings.
- Robust measurement set for intermediate to critical care environments.
- Supports T1 Transport Monitor/Module as a multi-parameter module.
- Extensive data storage capability for trend data, alarms, events, and 48 hours of full disclosure.
Mindray Passport 12m Specifications
Dimensions
- Height: 11.7 in (29.7 cm)
- Width: 13.2 in (33.6 cm)
- Depth: 7.4 in (18.7 cm)
- Weight: 16.5 lbs (7.5 kg) (Without modules, batteries, accessories, and recorder)
Display
- Type: Color TFT Display
- Size (Diagonal): 12 in (30.5 cm)
- Resolution: 800 x 600
Battery
- Type: Rechargeable Lithium-ion
- Voltage: 11.1 VDC
- Capacity: 4500 mAh
- Run Time (Average): About 330 minutes when powered by two new fully-charged batteries
- Charge Time: Less than 6 hours to 100%
ECG
- Lead Set: 3, 5, and 12-lead
- Sweep Speed: 6.25 mm/s, 12.5 mm/s, 25 mm/s, 50 mm/s
- Mindray Resolution: 1 bpm
- Mindray Accuracy: ±1 bpm or ±1%, whichever is greater
Resp
- Technique: Trans-thoracic impedance
- Lead: Options are lead I and II
- Measurement Range: Adult: 0 to 120 rpm; Pediatric/Neonate: 0 to 150 rpm
- Resolution: 1 rpm
- Accuracy: 7 to 150: ±2 rpm or ±2%, whichever is greater
Masimo SpO2
- Measurement Range: 1 to 100%
- Resolution: 1%
- Response Time: ≤ 20 s (PR 75 bpm, average time 8 s, SpO2 value rises from 60% to 95%)
- Refreshing Rate: ≤ 2 s
- SpO2 Averaging Time: 2-4 s, 4-6 s, 8 s, 10 s, 12 s, 14 s, 16 s
- Accuracy: 70 to 100%: ±2-3%
Nellcor SpO2
- Measurement Range: 1 to 100%
- Resolution: 1%
- Response Time: ≤ 30 s (PI > 0.3, no disturbance, SpO2 value sudden change within 70% – 100%)
- Refreshing Rate: ≤ 2 s
- Accuracy: 70 to 100%: ±2-3%
NIBP
- Technique: Oscillometry
- Mode of Operation: Manual, Auto and STAT
- Heart Rate Range: 40 to 240 bpm
- Resolution: 1 mmHg
- Accuracy: Max mean error ±5 mmHg
Temp
- Technique: Thermal resistance
- Operating Mode: Direct mode
- Measurement Range: 32 to 122°F (0 to 50 °C)
- Resolution: 0.1 °C
- Accuracy: ±0.1 °C or ±0.2 °F (without probe)
IBP
- Measurement Range: -50 to 300 mmHg
- Resolution: 1 mmHg
- Accuracy: ±2% or ±1 mmHg, whichever is greater (without sensor)
