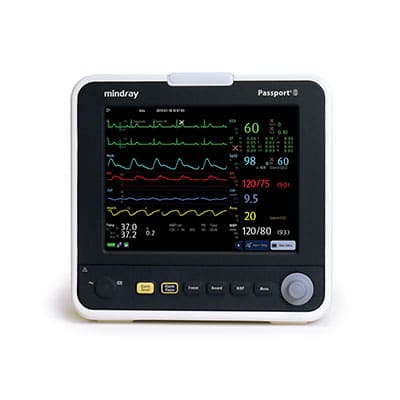

Mindray Passport 8

Equipo Médico Mindray - Soma Technology, Inc.


Mindray Passport 8 Features

Providing enhanced efficiency and ingenuity, Passport 8 works for many different levels of patient care. It comes standard with a large 8-inch touchscreen with easy touch function keys and the necessary parameters to meet your clinical needs, such as 3 or 5-lead ECG, NIBP, temperature, SpO2, and respiration. The Passport 8 also includes a plug-and-play modular structure with more advanced monitoring, such as CO2, cardiac output, 2-channel IBP or a combination of the three.
Integrated HL7 and DIAP communication protocols set the Passport 8 apart. Both wireless and wired network capabilities also provide better connectivity to the DPM Central Station and Panorama Patient Monitoring System. This allows for a continuous flow of patient data and easy sharing when necessary.

  • 8” high-resolution touchscreen display
  • Up to 7 waveforms
  • 3 or 5-lead ECG, SpO2, NiBP, respiration, temperature, an integrated recorder
  • Choice of Masimo SET or Nellcor OxiMax SpO2
  • Extensive data storage capability for trend data, alarms, events, NiBP measurements and up to 48 hours of full disclosure
  • Available wireless 2.4 GHz (802.11b/g/n)
  • Integrated HL7 and DIAP protocol interfaces
  • Defibrillator synchronization
  • Ergonomic carrying handle and multiple mounting options

Mindray Passport 8 Specifications


  • Height: 8.8in (22.4 cm)
  • Depth: 5.3 in (13.5 cm)
  • Width:9.5 in (24.2 cm)
  • Weight: 3.5 kg (7.8 lbs) (Standard parameters configuration, including a lithium battery and a recorder)

Input/Output Communications ECG Analog Output

  • Bandwidth (-3dB; reference frequency: 10Hz)
  • Diagnostic Mode: 0.05 to 150 Hz
  • Monitor Mode: 0.5 to 40 Hz
  • Surgical Mode: 1 to 20 Hz
  • Monitor QRS Delay: ≤ 25 ms (in diagnostic mode, and non-paced)
  • Sensitivity: 1V/mV ±5%
  • Pacer Enhancement
    • Amplitude: Voh≥2.5V
    • Width: 10 ms±5%
    • Signal Rising and
    • Falling Time: ≤100μs

Electrical Ratings

  • Power Supply: AC power, battery
  • AC Power: 100 to 240 VAC (±10%)
  • Current: 1.3 to 0.5 A
  • AC Power Input
  • Frequency: 50/60 Hz (±3Hz)

Environmental Conditions

  • Temperature Range Operating: 10°C to 40°C
  • Temperature Range Non-operating (storage): -20°C to 60°C
  • Humidity Range Operating: 15% to 95%, non-condensing
  • Humidity Range Non-operating (storage): 10% to 95%, non-condensing
  • Altitude Range Operating: -1,000 to 9,841 feet ASL)
    • 1,074 hPa to 700 hPa

    • (806 mmHg to 394 mmHg)


  • Type: Chargeable Lithium-Ion, 11.1DVC, 4.5 Ah
  • Number of Batteries: 1
  • Run Time: 6 hours when powered by a new fully-charged battery (25°C, SpO2 sensor and ECG cable connected, Temp cable not connected, Auto NIBP measurements at an interval of 15 minutes
  • Charge Time: Less than 3 hours to 90%, and less than 4 hours to 100% when the monitor is off.
  • Less than 8 hours to 90%, and less than 12 hours to 100%when the monitor is on.
  • Shutdown Delay: at least 20 min (after a low battery alarm first occurs)
