Philips SureSign VM6 Features

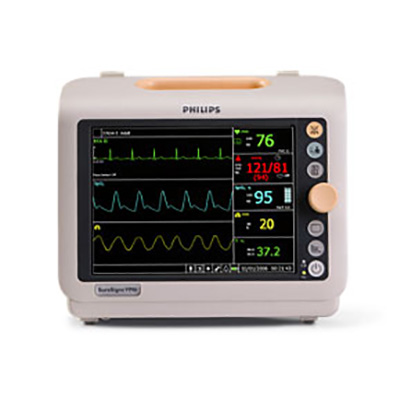

Philips SureSigns VM6 Vital Signs Patient Monitor. Standalone bedside patient monitor that is easy to learn and easy to use. Flexible and compact, the VM6 is ideal for continuous monitoring of multiple vitals for adults, pediatrics, and neonates.
The VM6 features an easy-to-read display with large color-coded numerics and up to 4 waveforms. The VM6 patient monitor weighs in at just 7 pounds (without optional recorder/printer add-on), so portability is not an issue. For ease of downloading data, the VM6 features LAN/serial data export in HL7 format. There is also a USB port for data export and software upgrades. It has a lithium-ion battery as an internal power supply and an AC power cord for operation and charging. Battery operating time is 4 hours with continuous monitoring and NBPs every 15 minutes.
- LCD Color Screen
- Intuitive Navigation; making frequently used test easily available
- Optional Recorder
- Lithium Battery
- Compatible with Adult, Pediatric and Neonatal patients
- USB port
Philips SureSign VM6 Specifications
Dimensions
- Width: 26 cm
- Height: 22 cm
- Depth: 14.5 cm
- Weight: 7.1 lbs
Display Screen
- Size: 8.4 in/20.3 cm
- Type: SVGA TFT-AM LCD
NBP
- Oscillometric using stepwise deflation pressure
- Adult/Pediatric Measurement Range: Systolic: 30–255 mmHg; Diastolic: 15–220 mmHg; Mean: 20–235 mmHg
- Neonatal Measurement Range: Systolic: 30–135 mmHg; Diastolic: 15–110 mmHg; Mean: 20–125 mmHg
- Blood Pressure Accuracy: ±5 mmHg
- Pulse Rate Accuracy: ±2 bpm or ±2% (whichever is greater)
IBP (optional)
- Range: [-40] – 360 mmHg
- Accuracy: ±4 bpm or ±4% (whichever is greater)
SPo2
- Meets EN ISO 9919 standard
- Measurement Range: 0 – 100%
- Accuracy: Depends on the sensor
ECG
- 3 or 5-lead
- Heart Rate Range: 15 – 300 bpm
- Respiration Rate Range: 4 – 150 rpm
Temperature
- Mode: Continuous
- Method: Esophageal, rectal, or skin
- Range: 25 – 45OC (77.0 – 113.0OF)
- Accuracy: ±0.1OC
Battery
- Lithium-ion, 11.1V
- Operating Time: 4 hours with continuous monitoring and NBPs every 15 minutes
Data Output
- HL7 format, via Ethernet port
Patients
- Adult, pediatric, neonatal
