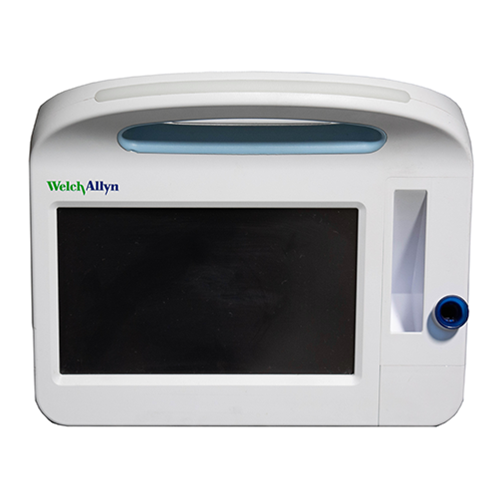

Welch Allyn Connex Vital Signs Monitor Features
The Welch Allyn Connex is a vital signs monitor. There are two different modes of the Connex vital signs monitor; the 6700 model and the 6800. The difference between the models is that 6800 includes a wireless connection.
The Welch Allyn Connex features a touch screen monitor that can monitor measurements such as pulse oximetry, blood pressure, and temperature. This monitor can support multiple workflows including triage, spot-checking, and continuous monitoring of patients. In addition, the device has the capability to provide clinicians with early warnings/alarms to help them proactively intervene to reduce patient falls, pressure ulcers, and respiratory distress, and to improve EMR documentation.
- SureBP—15-second NIBP and pulse rate
- SureTemp Plus and/or Braun ThermoScan PRO 4000 ear thermometry (optional—choose one or both)
- Masimo or Nellcor SpO2 algorithms (optional)—both sensors and signal processing
- Masimo noninvasive continuous monitoring of total hemoglobin (optional)
- Adult, pediatric, neonatal blood pressure modes
- NIBP interval monitoring mode, including customizable interval programs
- Manual measurements entry (weight, height, respiration rate, pain) and documentation of modifiers, like body position and O2 therapy
- Programmable visual and audible alarms for BP, SpO2, temp, and pulse
- Large color touchscreen simplifies training and operation
- Complete error messages for easy troubleshooting
- Fully customizable, including programmable location identifier and quick USB configuration cloning
Welch Allyn Connnex Vital Signs Monitor Specifications
Dimensions
- Height: 10 in (25.4 cm)
- Width: 11 in (27.9 cm)
- Depth: 6 in (15.2 cm)
- Weight (including battery): 9.5 lb. (4.3 kg)
- Graphical Display Dimensions: Display area (WxH): 8inx4in(20.3cmx10.2cm); Resolution: 1024 x 600 pixels
Battery
6-Cell Battery (6300 Models):
- Rating: 11.1 V, 3.80 Ah (42 Wh)
- Composition: Lithium-ion
- Charge time to 80% capacity: 2 hr 7 m
- Charge time to 100% capacity: 3 hr
- Battery life: 4.3 hours*
9-Cell Battery (6400 and 6500 Models):
- Rating: 10.8 V, 6.75 Ah (73 Wh)
- Composition: Lithium-ion
- Charge time to 80% capacity: 2 hr 25 m
- Charge time to 100% capacity: 4 hr
- Battery life: 7.8 hr*
Temperature
- SureTemp temperature range: 80 °F to 110 °F (26.7 °C to 43.3 °C) Braun temperature range: 68 °F to 108 °F (20.0 °C to 42.2° C)
SpO2
- SpO2 performance measurement range: 1 to 100%
Total Hemoglobin (SpHb) TM
- Saturation range: 0 to 25 g/dl
Environmental
- Operating temperature: 50 °F to 104 °F (10 °C to 40 °C)
- Storage temperature: -4 °F to 122 °F (-20 °C to 50 °C)
- Operating altitude: -557 to 10,000 ft. (-170 m to 3,048 m)
- Operating humidity: 15 to 95% noncondensing
- Storage humidity: 15% to 95% noncondensing
Monitor Radio Wireless Network Interface
- IEEE 802.11 a/b/g
Security / Encryption / Authentication
- WEP: 64 & 128, WPA2/AES: PSK or 802.1x authentication including EAP-TLS, EAP-TTLS, and EAP-PEAP
