Welch Allyn Propaq CS 244 Features

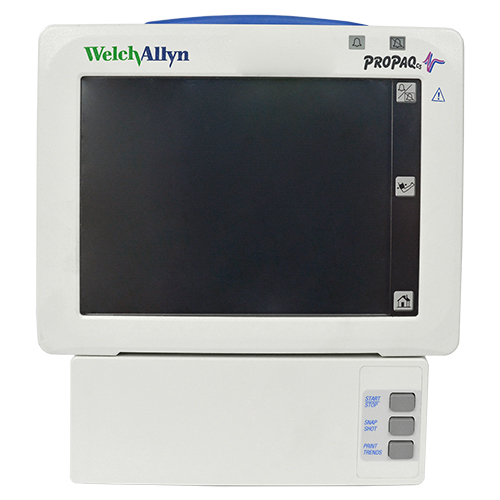

The Welch Allyn Propaq 244 is a multi-parameter patient monitor. The Propaq CS 244 offers patient vital signs along with measurements of 3-5 lead ECG, Non-invasive and Invasive blood pressure, temperature, Co2, and SpO2. The Display is a 6-inch color touch screen display that can show up to 3 waveforms at once. The Patient monitor can run for 2 hours with a full battery charge, and store up to 5 hours of trending data, with a maximum storage of 8 hours of data.
- 3 or 5-lead ECG monitoring.
- Continuous vital signs monitoring.
- Detects rate or absence of respiratory effort, deriving the signal by measuring the ac impedance between the selected terminals of the ECG electrodes.
- Noninvasive Blood Pressure (NIBP) monitoring.
- Invasive Blood Pressure monitoring.
- Temperature (TEMP) monitoring using an attachable probe.
- SpO2, CO2, and Recorder (Optional).
Welch Allyn Propaq CS 244 Specifications
Dimensions (Monitor)
- Height: 8.2 in (20.8 cm)
- Width: 9.6 in (24.4 cm)
- Depth: 5.6 in (14.1 cm)
- Weight: 7.6 lbs (3.4 kg)
Dimensions with Printer, SpO2, and MCO2
- Height: 11.4 in (28.8 cm)
- Width: 9.6 in (24.4 cm)
- Depth: 7.7 in (19.7 cm)
- Weight: 14.4 lbs (6.5 kg)
Power
- Mode of Operation: Continuous
- Battery Type: Sealed, gel-type lead acid
- Battery Recharge Time: 8 to 12 hours
- Operating Time on Battery: 2 hours
Display
- Type: Color active matrix; TFT (Thin Film Transistor) LCD Module
- Resolution: 640 x 480 pixel
- Active Viewing Area: 6.73 x 5.1 in. (17.09 x 12.96 cm)
Trends
- Parameters: NIBP, P1, T1, T2, ΔT, HR (heart rate/pulse rate), SpO2, End-tidal CO2, Inspired CO2, Breath Rate/Resp Rate. Assuming SpO2 and CO2 functions are present.
- Duration: 5 hours for non-NIBP trends (up to 150 readings). A maximum of 128 readings (up to 8 hours) for NIBP trends.
Printer (Optional)
- Operating Modes: Continuous, Snapshot, Auto Print, Auto Trend, Tabular Trend, Alarm Print, NIBP Ticket, Apnea Ticket, OxyCRG, OxyCRG on Alarm
- Auto Print Intervals: 15 min, 30 min, 1 hour, 2 hours, 4 hours
- Auto Trend Shifts: Once every 4 hours
- Number of Waveforms: Up to three: ECG1, P1, P2, SpO2, CO2, RESP
- Printing Speeds: 6.25, 12.5, 25.0 mm/s, simulated 6.25 mm/s for CO2 and RESP in Snapshot mode
