Vyaire Avea CVS Features

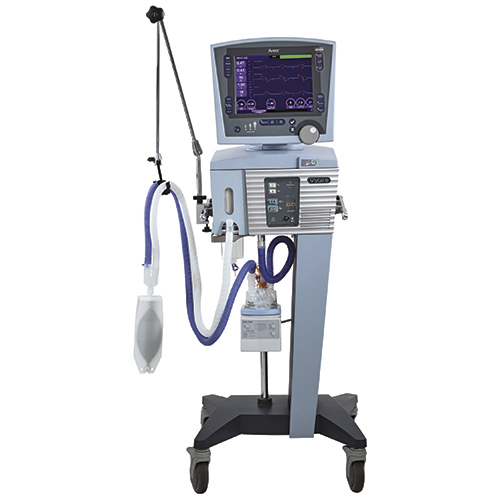

The Vyaire Avea CVS is a ventilator that is used in acute care environments for patients ranging from neonates to adults. The Avea CVS offers a dynamic range of breathing gas delivery, with a new version of the user interface module. This can maximize the flexibility of the ventilation system and customize a solution for each patient. The flat-panel LCD Touch screen makes it easy to make changes in the settings and operating parameters. The Avea CVS operates on a Servo-controlled, software-driven ventilation system that when mixed with the gas delivery system, can improve the patient’s inhalation and exhalation.
- Neonatal, Pediatric, and adult care compatible.
- Artificial airway compensation.
- 24-hour trending with custom histograms.
- Super VGA color graphics.
- User-configurable monitored parameters.
- Accurate volume delivery.
- Improved synchrony and comfort.
Vyaire Avea CVS Specifications
Dimensions (Pneumatic Module)
- Height: 10.5” (26.7 cm)
- Width: 16.75” (43.2 cm)
- Depth: 16” (40.6 cm)
Dimensions (User Interface Module)
- Height: 13.75” (35 cm)
- Width: 16.25” (43.2 cm)
- Depth: 2.5” (6.4 cm)
Weight
- Ventilator (Including User Interface Module): 83 lbs (37.6 kg)
- Ventilator and Compressor (Internal): 90 lbs (40.8 kg)
Battery Power
- 1 hr of ventilator use on internal battery (standard) or 30 minutes ventilator and compressor
- 4 hr of ventilator use on external battery or 2 hr ventilator and compressor
Display
- Super VGA Color Graphics
- Viewable Size (Diagonal): 12.1” (30.7 cm)
- Resolution: 800 x 600
Modes
- Mode Type: A/C, SIMV, CPAP/PSV, NPPV, nCPAP/IMV
- Breath Type: APRV/BiPhasic, Volume, Pressure, TCPL, PRVC, Volume Guarantee
- Apnea Backup: Volume, Pressure, TCPL
Primary Settings
- Rate: 1–150 bpm (neonatal, pediatric), 1–120 bpm (adult)
- Tidal Volume: 2.0 mL–2.5 L
- Inspiratory Pressure: 0–80 cmH2O (neonatal), 0–90 cmH2O (adult, pediatric)
- Peak Flow: 0.4–150 L/min
- Inspiratory Time: 0.15–5.0 sec
- Pressure Support Ventilation (PSV): 0–80 cmH2O (neonatal), 0–90 cmH2O (adult, pediatric)
- PEEP: 0–50 cmH2O
- Flow Trigger: 0.1–20 L/min
- O2: 21–100%
- Pressure High (in APRV/BiPhasic mode): 0–90 cmH2O
- Time High (in APRV/BiPhasic mode): 0.2–30 sec
- Time Low (in APRV/BiPhasic mode): 0.2–30 sec
- Pressure Low (in APRV/BiPhasic mode): 0–45 cmH2O
Manual Controls
- Manual Breath: One breath
- Expiratory Hold: Max. 20 sec (adult, pediatric), 3 sec (neonatal)
- Inspiratory Hold: Max. 3 sec
- Increase O2: Set percentage O2 + 0–79% O2
- Synchronized Nebulizer: Available when delivered flow ≥ 15 L/min
- Disconnect for Suction: Active
Advanced Settings
- Bias Flow: 0.4–5.0 L/min
- Volume Limit: 2.0 mL–2.5 L
- Inspiratory Rise: 1–9
- Flow Cycle: 0 (Off) to 45%
- PSV Rise: 1–9
- PSV Cycle: 5–45%
- PSV TMAX: 0.15–5.0 sec
- Waveform: Square, decelerating
- Sigh: On/Off
- Pressure Trigger: 0.1–20 cmH2O
- Demand Flow: On/Off
- Volumetric Capnography: EtCO2 averaging 1 or 8 breaths, VCO2 averaging: 3, 6, 9, or 12 minutes
Advanced Patient Monitoring
- Proximal hot wire flow sensor
- Proximal variable orifice flow sensor (infant, pediatric, adult)
- Proximal airway pressure monitoring
- Tracheal pressure monitoring
- Esophageal pressure monitoring
- Volumetric capnography
