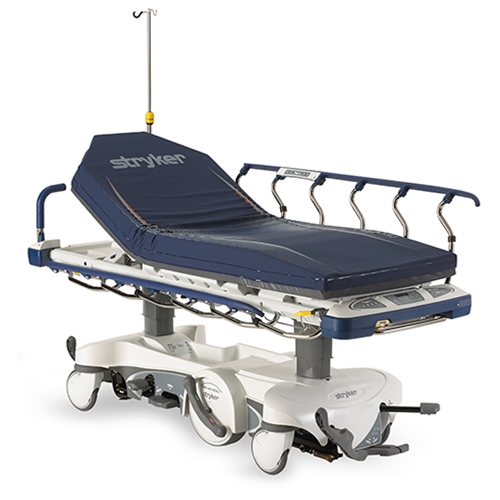

Stryker Prime Series

Stryker Prime Series Stretcher Features

The Stryker Prime Series is a user-friendly stretcher. It was designed to reduce the strain the hospital worker while moving and still provide substantial patient comfort at the same time. The Stryker Prime stretcher offers advanced mobility with larger wheels and a zoom motorized drive system. The stretcher comes with electrical functionality making it easier for the patient to make adjustments to improve comfort without calling for a caregiver. With an electric power lift, you can simply touch the hydraulic pedal and raise the litter. The electrical system attached to the Stryker Prime can reduce the risk of the patient falling with two alarm zones. Using the system you can even weigh the patient with an integrated scale in both pounds and kilograms. The stretcher can hold a maximum weight of 700 lbs.

• Four-wheel, center-locking brake system.
• Dual side-mounted foot control hydraulics with uni-lower pedal.
• ± Trendelenburg.
• Less than 21-inch low height.
• Power-washable design.
• 4 integrated I.V. receptacles.
• Glidaway side rails

Stryker Prime 1105

• Include fifth wheel steering

Stryker Prime 1115

• Big wheel steering

Stryker Prime 1125

• Zoom motorized drive system

Stryker Prime Series Specifications

Dimensions

• Overall Length:
  • 1105, 1115: 85 in. (216 cm)
  • 1125: 86 in. (218 cm)
• Overall Width:
  • Siderails Up: 34 in. (86.4 cm)
  • Siderails down: 30.25 in. (76.8 cm)
• Weight Capacity: 700 lbs. (318 kg)
• Hight Range – High: 34 in. (86.4 cm)
• Height Range – Low (1105, 1115):20.75 in. (53 cm)
• Height Range – Low (1125): 23 in. (58 cm)

26″ & 30″ Litter Specifications

• Litter Positioning
  • Backrest: 0° – 90°
  • Trend. Reverse Trend. ( 1105, 1115): +/- 17°
  • Trend. Revers Trend. (1125): +/- 16°
  • Knee Gatch: 0° – 40°
  • Maximum Angle: 87.5°
• Patient Surface: 26 in. x 75.25 in. (66 x 191 cm)
• Side Rails: 14 in x 57.75 in. (36 x 147 cm)
• Caster Diameter: 8 in. (20 cm)
