Edan SE 1200

Edan SE-1200 ECG

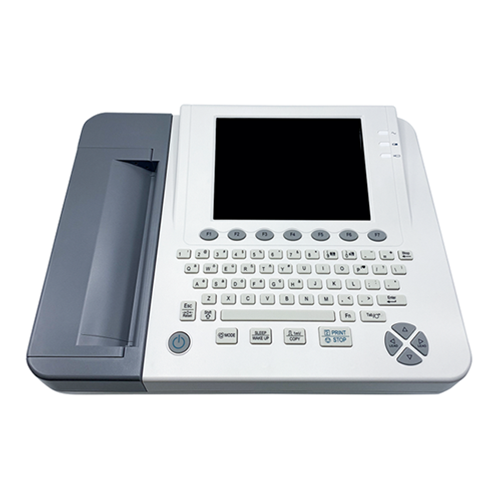

The Edan SE-1200 is an ECG machine that offers touch-screen functionality. The Edan comes with an 8.4-inch color LCD touch display screen, an Alphanumeric keyboard, and a built-in Thermal printer. where you can print and preview waveforms for both adult and pediatric patients. Additionally, the Edan SE 1200 offers wifi connection ability and built-in memory that could store up to 800 ECG readings. The Edan ECG is a 12-channel system that also offers weak signal detection, filters, and anti-noise technology to improve the electrocardiograph readings and waveforms.

• 8.4″ Color Touch Screen
• Alphanumeric Keyboard and One Touch Operation
• Sleep Mode to Save Energy and Extend LCD Life
• Automatic Measurement and Interpretation Tested With Authoritative CSE Database
• Real-Time Waveform Freezing
• 120 Seconds ECG Waveform Reviewable
• Two-Step Exercise Test With Periodic Recording
• Built-In Rechargeable Li-ion Battery
• 200 ECGs in Internal Memory

Edan SE 1200 ECG Specifications

Dimensions

• Height:16.4 in (42 cm)
• Width: 13 in (33 cm)
• Depth: 4.1 in (10.5 cm)
• Weight: 11 lbs ( 5kg) Excludes paper and battery

Power Supply

• Main Supply
  • Operating Voltage = 100V-240V~
  • Operating Frequency = 50Hz/60Hz Input
  • Current = 0.9-0.4A
• Internal Li-ion Battery Pack:
  • SE-1200 Express: Rated voltage = 14.8V
  • SE-1200: Rated voltage = 14.8V
  • SE-1200 Express: Rated capacity = 4400mAh
  • SE-1200: Rated capacity = 2200mAh
• Charge Voltage: (16.8-0.1V)
• Necessary Charge Time:
  • SE-1200 Express: 9.5 hours
  • SE-1200: 5 hours
• Fuse: T1AL250VP Ø5×20

Environmental

• Temperature Working: +5ºC (+41ºF) ~ +40ºC (+104ºF)
• Temperature Transport and Storage: -20℃ (-4ºF) ~ +55℃ (+131ºF)
• Relative Humidity Working: 25%~80% non-Condensing
• Relative Humidity Transport and Storage: 25%~93% Non-Condensing
• Atmospheric Pressure Working: 860hPa ~1060hPa
• Atmospheric Pressure Transport and Storage: 700hPa ~1060hPa

Recording

• Recorder: Thermal dot-matrix recorder
• Printing Density 8 dots per mm / 200 dots per inch (amplitude axes) 40 dots per mm / 1000 dots per inch (time axes, @ 25 mm/s)
• Recorder Paper: Folded thermal paper: 210mm×295mm×100pages Folded thermal paper: 215mm×280mm×100pages (Optional)
• Rolled thermal paper: 210mm×30m (Optional)
• Effective Width: 203mm
• Paper Speed: 5mm/s, 6.25mm/s, 10mm/s, 12.5mm/s, 25mm/s, 50mm/s （±3%）
• Accuracy of data: ±5% (x-axis), ±5%(y-axis)

HR Recognition

• Technique: Peak-peak detection
• HR Range: 30 BPM ~300 BPM
• Accuracy: ±1 BPM

ECG Unit

• Leads: 12 standard leads
• Acquisition Mode: simultaneously 12 leads
• A/D Resolution: 24 bits
• Time Constant: ≥3.2s Frequency Response: 0.05Hz ~ 150Hz (-3dB)
• Gain: 2.5, 5, 10, 20, 10/5, AGC (mm/mV)
• Input Impedance: ≥50MΩ (10Hz)
• Input Circuit Current: ≤0.01μA
• Input Voltage Range ≤±5 mVpp
• Calibration Voltage: 1mV±2%
• DC Offset Voltage: ±600mVNoise: ≤12.5 μVp-p
• Multichannel crosstalk ≤0.5mm
• Filters
  • AC Filter: On/Off
  • DFT Filter: 0.05Hz/0.15Hz/0.25Hz/0.32Hz/0.5Hz/0.67Hz
  • EMG Filter: 25Hz/35Hz/45Hz/OFF
  • LOWPASS Filter:150Hz/100Hz/75Hz
• CMRR ≥115dB
• Sampling Frequency 1000 Hz

Pacemaker Detection

• Amplitude ±2 to ±700 mV
• Width 0.1 to 2.0 ms
• Sampling Frequency 10,000/sec/channel
