Olympus PCF-H180A Features

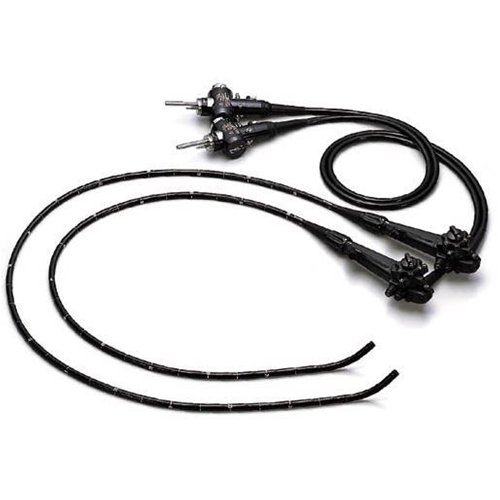

The slim EVIS EXERA II PCF-H180AL/I is equipped with a high-definition HDTV image sensor to provide clear and detailed images, while Narrow Band Imaging (NBI) enhances visualization of the capillary network and mucosal morphology. There’s even a Close Focus function for up-close viewing with no loss of resolution. The PCF-H180AL/I maintains a remarkably slim design for exceptional insertion capability while delivering outstanding imaging performance.
- Exceptional image quality: High-resolution imaging and a large image size enable detailed observation of the colon while Narrow Band Imaging enhances visualization of the capillary network and mucosal morphology.
- Easy mucosal cleaning for better observation: An auxiliary water function can be combined with a dedicated flushing pump to enable removal of mucus and clots in the colon at the touch of a switch on the scope or on the footswitch unit.
- Improved handling: The PCF-H180AL/I features innoflex™ Variable Stiffness technology, enabling adjustment of the insertion tube flexibility to match the conditions and contours of the colon.
Olympus PCF-H180A Specifications
Physical Specifications
- Channel Width: 3.2
- Working Length: L:1680, I:1330
- Field of View: 140
Angulation
- Max Angulation Up 180
- Max Angulation Down: 180
