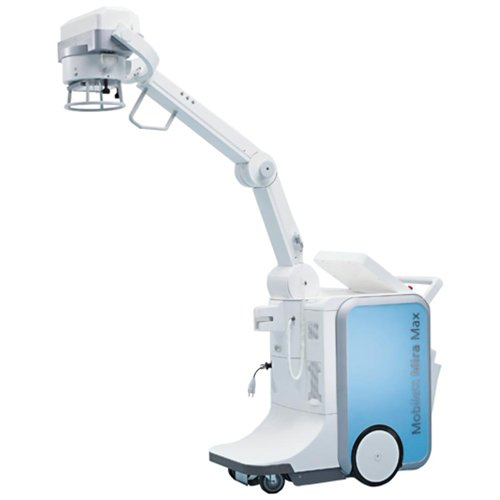

Siemens Mobilett Mira Max

Rayos X Portables

Equipo Médico Siemens - Soma Technology, Inc.

Descripción

Siemens Mobilett Mira Max Features

The Siemens Mobilett Mira Max is a portable X-ray machine with 35 kW (450 mA) imaging power. The Mobilett Mira Max is compatible with 2 different sized detectors, the MAX wi-D (14” x 17” x 0.7) and the MAX mini (10” x 12” x0.6”) which is small enough to fit inside an incubator tray. Automatic imaging processing with DiamondView Plus that enhances bone detail and tissue contrast without the need to increase the dose.

  • Highly flexible tube arm that is easy to maneuver with it’s ability to rotate 180°.
  • All cables on the Mira Max run inside the tube arm of the mobile X-ray.
  • 49” max. tube arm horizontal extension.
  • 84” max. tube arm height.

Siemens Mobilett Mira Max Specifications

Dimensions

  • Height: 61.8” (157 cm)
  • Width: 23.4” (59.5 cm)
  • Depth: 44.5” (113 cm)
  • Weight: 827 lbs (375 kg)

MAX wi-D Detector

  • Dimensions: 14” x 17” x 0.7” (35 cm x 43 cm x 1.9 cm)
  • Weight: 6.6 lbs (3 kg)
  • Scintillator Cesium iodide (Csl)

MAX Mini Detector

  • Dimensions: 10” x 12” x 0.6” (24 cm x 30 cm x 1.6 cm)
  • Weight: 3.5 lbs (1.6 kg)
  • Scintillator Cesium iodide (Csl)

General

  • Power Output: Max. 35 kW, max. 450 mA
  • Max. Focal Spot Height: 84“ (213.5 cm)
  • Max. Horizontal Extension: 49“ (124.5 cm)
  • Standard Battery Pack (65 Ah): Battery operation time 6 h/200 exposures at 70 kV/20 mAs; Standby time (On state) 12 h
  • High Power Battery Pack (Option) (90 Ah): Battery operation time 8 h/270 exposures at 70 kV/20 mAs; Standby time (On state) 16 h
  • Image Processing: DiamondView Plus – Automatic, dose-neutral image processing for improved organ-specific contrast and detail
  • Detector Sharing: Possible across all MAX systems via MAXswap
